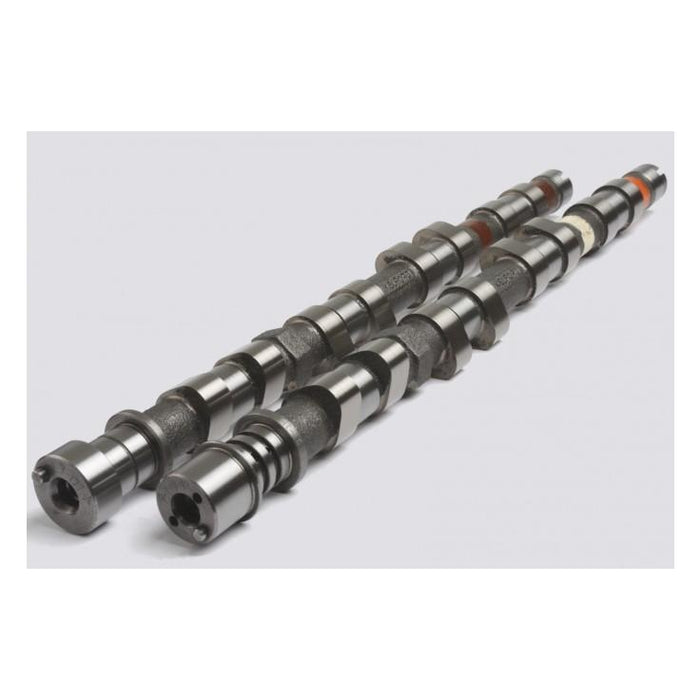

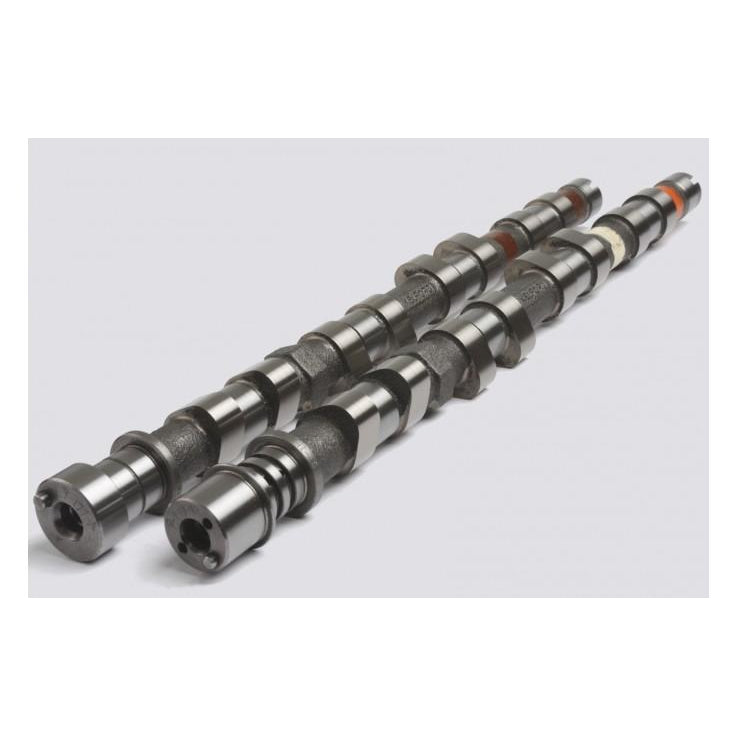

Kelford Cams 9-TX288 Mitsubishi 4G63 EVO9 Performance Cam Set

$1,116.56 NZD
SKU KC9-TX288
Buy now pay later,no extra cost!

Payments from $111.65 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

288/280 Degree advertised duration, 12.00/11.50mm lift.

Additional Information

Drag racing cams. These camshafts suit high HP, professionally built drag racing engines up to 50lb boost and 9500 RPM with our recommended valve springs.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 9 MIVEC 9-TX288
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 6.94mm Exhaust: 6.65mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 12.00mm Exhaust: 11.50mm
Advertised Duration @ 0.10mm Intake: 288 Exhaust: 280
Duration @ 1.00mm VALVE LIFT Intake: 242 Exhaust: 238
Timing @ 1.00mm VALVE LIFT IVO: 9 ATDC EVO: 56 BBDC
    IVC: 71 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 130 Exhaust: 117
VALVE Lift @ TDC Intake: 0.48mm Exhaust: 1.32
