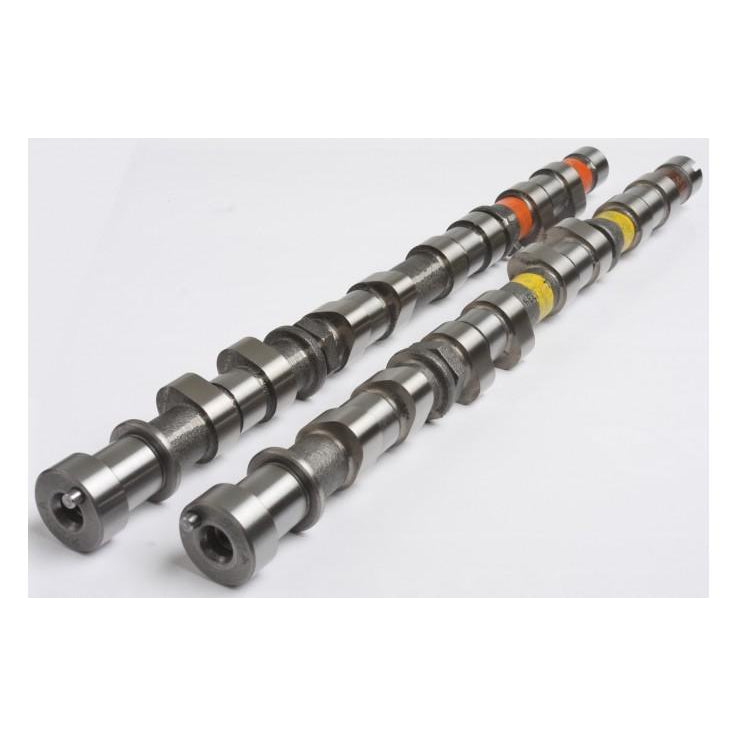

Kelford Cams 8-SLX294 Mitsubishi 4G63 EVO8 Race Cams To Suit Solid Lifters
Buy now pay later,no extra cost!
Payments from $107.98 with

Note: Please check availability with us before ordering.
294/300 Degree advertised duration, 12.00mm/12.00mm lift.
Additional Information:
Cams for Mitsubishi 4G63 Evolution 8 engines with solid lifter conversion. Drag racing cams to suit extreme boost, high RPM engines that use Ethanol / Methanol and/or nitrous.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 8 | 8-SLX294 | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 7.14mm | Exhaust: | 7.14mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 12.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 294 | Exhaust: | 300 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 251 | Exhaust: | 258 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 15.5 BTDC | EVO: | 67 BBDC | ||
| IVC: | 55.5 ABDC | EVC: | 11 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 118 | |||
| VALVE | Lift @ TDC | Intake: | 2.40mm | Exhaust: | 1.90 | ||
