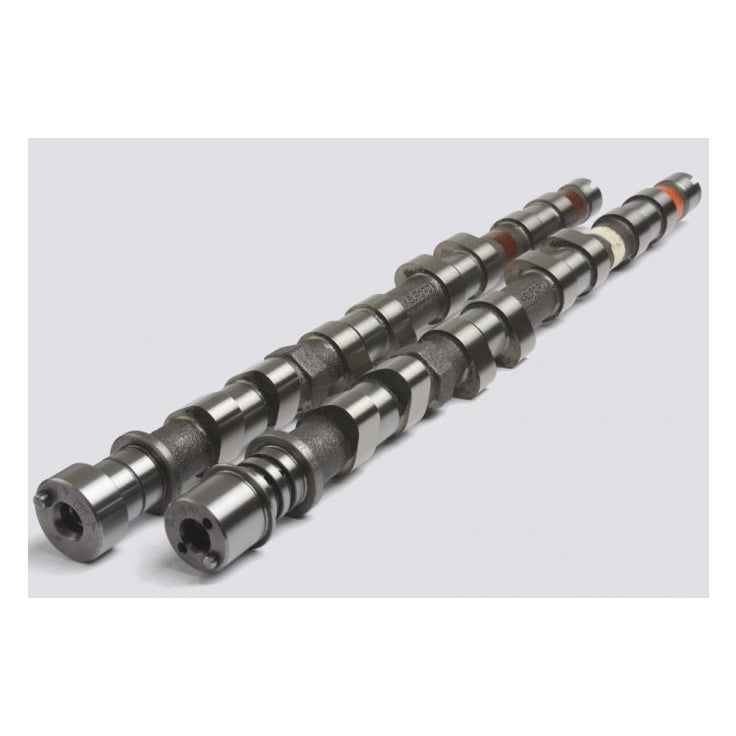

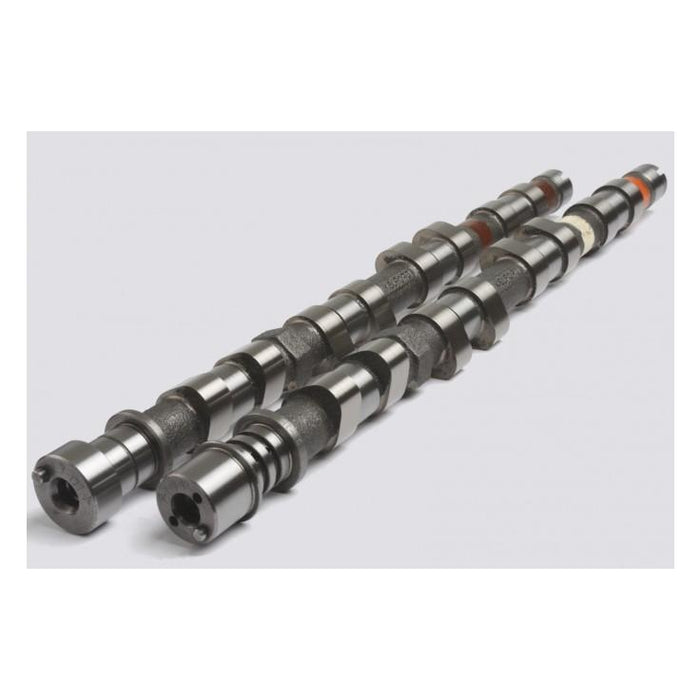

Kelford Cams 9-TX278 Mitsubishi 4G63 EVO9 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $107.98 with

Note: Please check availability with us before ordering.
Additional Information:
High performance camshafts for street/strip and track racing engines using E85 or similar blend fuels.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 9 MIVEC | 9-TX278 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.36mm | Exhaust: | 6.36mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 278 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 230 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 17 ATDC | EVO: | 50 BBDC | ||
| IVC: | 63 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 0.23mm | Exhaust: | 1.00 | ||
