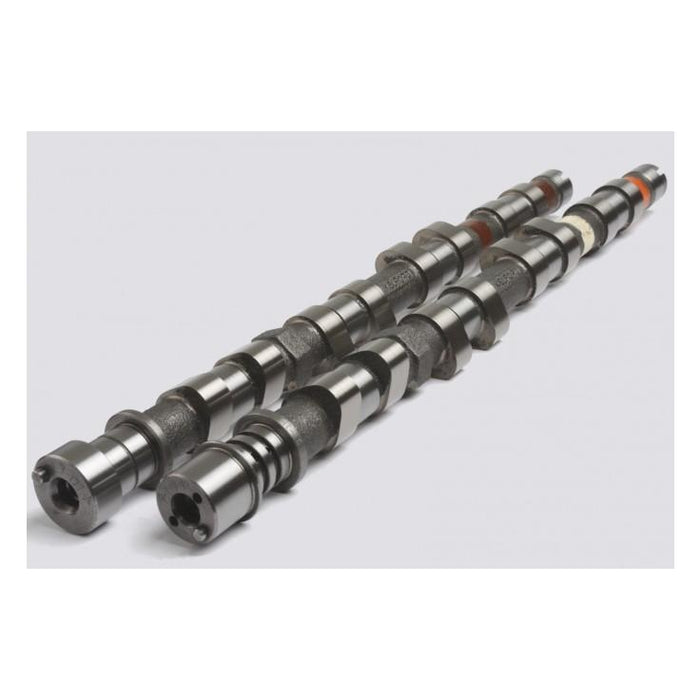

Kelford Cams 9-TX272-L Mitsubishi 4G63 EVO9 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $107.98 with

Note: Please check availability with us before ordering.
272 Degree advertised duration, 10.00mm Low lift
Additional Information:
These 272 degree high performance camshafts are designed with lower lift for use with the stock valve springs.
Camshaft Information:| Engine Make: | Engine Model: | Part Number: | |||
| MITSUBISHI | 4G63 EVO 9 MIVEC | 9-TX272-L | |||
| Valve Clearance: | Intake: | Set | at the | ||
| Exhaust: | Set | at the | |||
| Cam Lift: | Intake: | 5.78mm | Exhaust: | 5.78mm | |
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |
| Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 10.00mm | |
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 272 |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 226 |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 17 ATDC | EVO: | 48 BBDC |
| IVC: | 63 ABDC | EVC: | 2 BTDC | ||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 115 | |
| VALVE | Lift @ TDC | Intake: | 0.14mm | Exhaust: | 1.12 |
