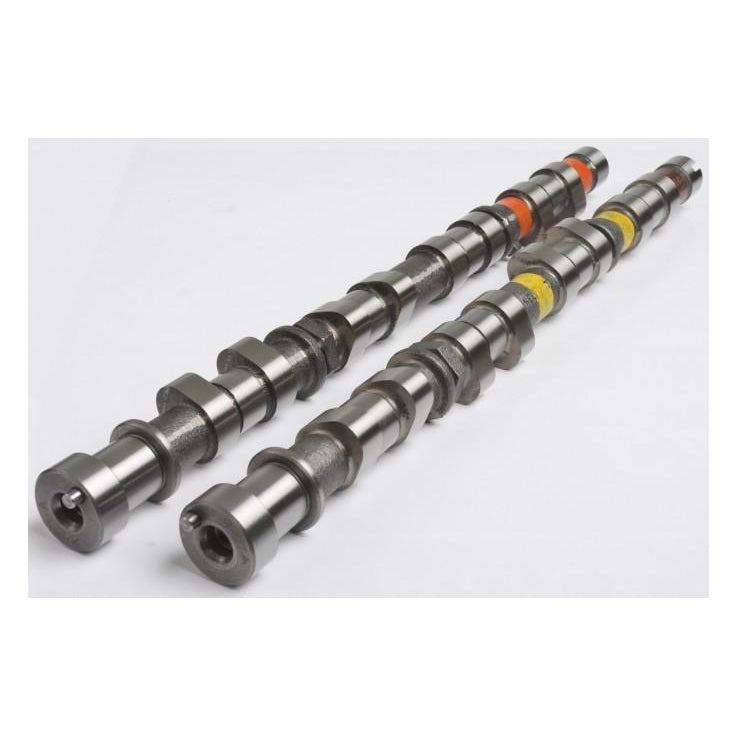

Kelford Cams 4-TX280 Mitsubishi 4G63 EVO 4-7 Performance Cam Set

$1,029.62 NZD
SKU KC4-TX280
Buy now pay later,no extra cost!

Payments from $102.96 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

280/276 Degree advertised duration, 11.50/11.00mm lift.

Additional Information:

High HP racing cams. These camshafts suit well built racing engines up to 35lb boost and 9000 RPM with our recommended valve springs.

Camshaft Information:

Engine Make:  Engine Model:  Part Number:
MITSUBISHI  4G63-EVO 4-7  4-TX280
Valve Clearance:  Intake:  Set  at the
   Exhaust:  Set  at the

Cam Lift:     Intake:  6.65mm  Exhaust:  6.36mm
Rocker Ratio:     Intake:  1.73 Exhaust:  1.73
Nett Valve Lift:     Intake:  11.50mm  Exhaust:  11.00mm
Advertised Duration @  0.10mm  Intake:  280 Exhaust:  276
Duration @  1.00mm VALVE LIFT  Intake:  238 Exhaust:  230
Timing @  1.00mm VALVE LIFT  IVO:  12 BTDC  EVO:  50 BBDC
      IVC:  46 ABDC  EVC:  0 TDC
Suggested Centre Lines:     Intake:  107 Exhaust:  115
VALVE  Lift @ TDC  Intake:  2.09mm  Exhaust:  1
