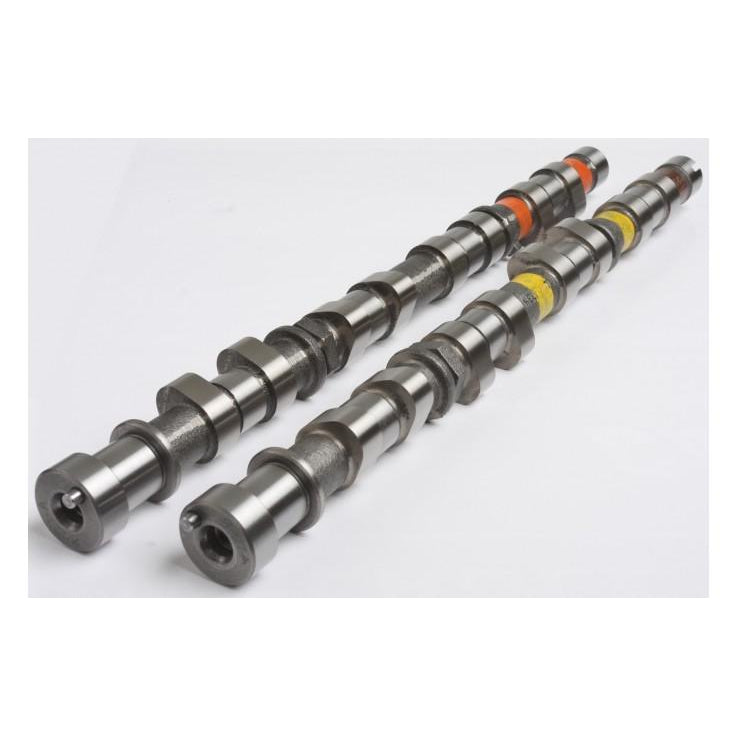

Kelford Cams 4-TX278 Mitsubishi 4G63 EVO 4-7 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $107.98 with

Note: Please check availability with us before ordering.
272/278 Degree advertised duration, 11.00/11.00mm lift
Additional Information:
High performance camshafts for street/strip and track racing engines using E85 or similar blend fuels.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||
| MITSUBISHI | 4G63 EVO 4-7 | 4-TX278 | |||
| Valve Clearance: | Intake: | Set | at the | ||
| Exhaust: | Set | at the | |||
| Cam Lift: | Intake: | 6.36mm | Exhaust: | 6.36mm | |
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 278 |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 230 |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 50 BBDC |
| IVC: | 40 ABDC | EVC: | 0 TDC | ||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 115 | |
| VALVE | Lift @ TDC | Intake: | 1.52mm | Exhaust: | 1 |
