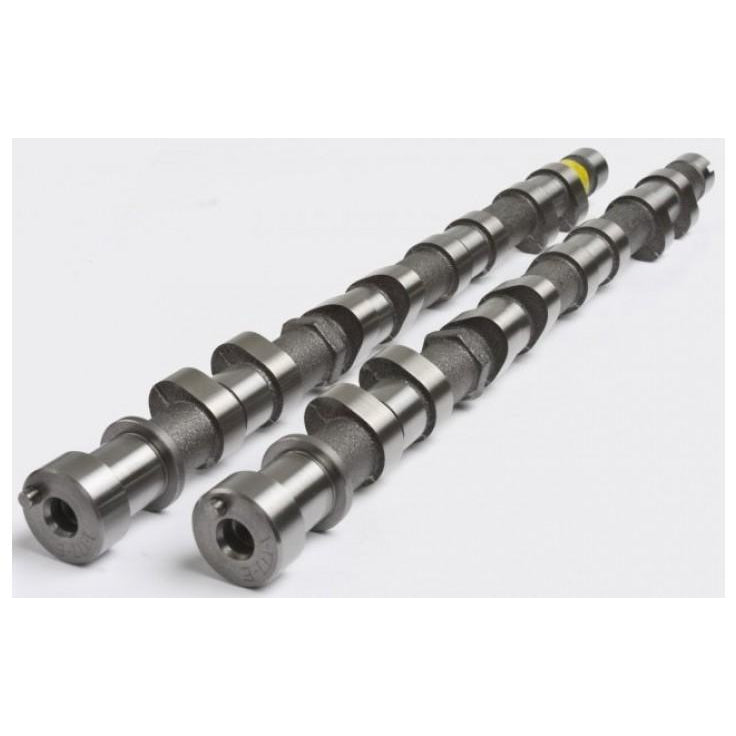

Kelford Cams 1-SLX260 Mitsubishi 4G63 EVO 1-3 Solid Lifter Race Cams
Buy now pay later,no extra cost!
Payments from $107.98 with

Note: Please check availability with us before ordering.
260/264 Degree advertised duration, 10.50mm/10.50mm lift.
Additional Information:
Cams for Mitsubishi 4G63 VR4 Evolution 1-3 engines with solid lifter conversion, to suit 32-40mm restrictor plate and GPA rally engines.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 1-3 | 1-SLX260 | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 6.27mm | Exhaust: | 6.27mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 10.50mm | Exhaust: | 10.50mm | |||
| Advertised Duration @ | Intake: | 260 | Exhaust: | 264 | |||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 212 | Exhaust: | 220 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 1 ATDC | EVO: | 43 BBDC | ||
| IVC: | 33 ABDC | EVC: | 3 BTDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 0.97mm | Exhaust: | 0.79 | ||
