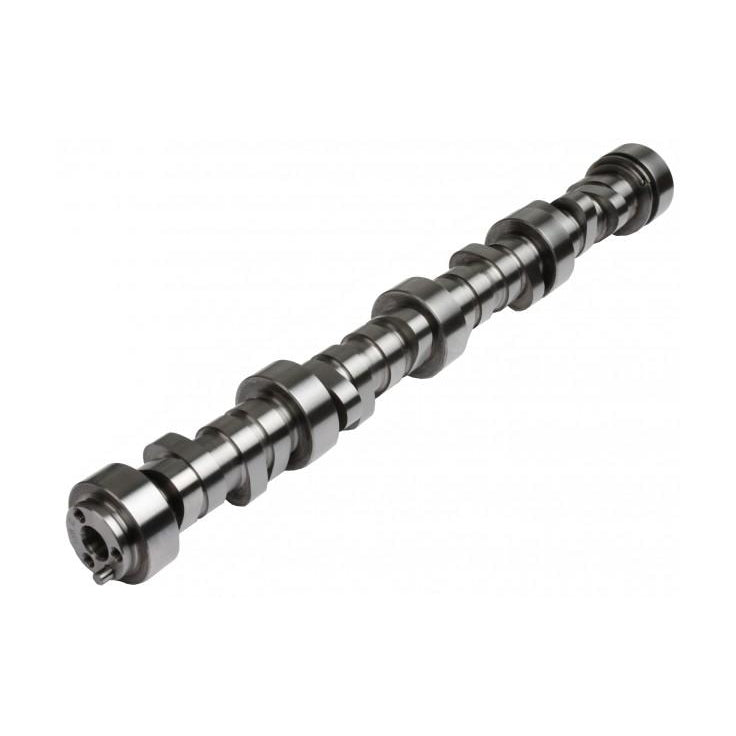

Kelford Cams RX108-SP LS Solid Race Cam
Buy now pay later,no extra cost!
Payments from $80.38 with

Note: Please check availability with us before ordering.
248/254 Degrees duration @ 0.050" cam lift, .650"/.660" lift.
Additional Information
Baseline solid lifter camshaft for turbocharged competition motors running launch limiters and / or flat shift. Valve spring will depend on RPM and boost level.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| CHEVROLET | LS Series V8 | RX108-SP | |||||
| Valve Clearance: | Intake: | 0.020" | Set | HOT | at the | VALVE | |
| Exhaust: | 0.020" | Set | HOT | at the | VALVE | ||
| Cam Lift: | Intake: | 0.394" | Exhaust: | 0.400" | |||
| Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
| Nett Valve Lift: | Intake: | 0.650" | Exhaust: | 0.660" | |||
| Advertised Duration @ | 0.020" | Intake: | 296 | Exhaust: | 302 | ||
| Duration @ | .050" CAM LIFT | Intake: | 248 | Exhaust: | 254 | ||
| Timing @ | .050" CAM LIFT | IVO: | 9 BTDC | EVO: | 62 BBDC | ||
| IVC: | 59 ABDC | EVC: | 12 ATDC | ||||
| Suggested Centre Lines: | Intake: | 115 | Exhaust: | 115 | |||
| CAM | Lift @ TDC | Intake: | 0.092" | Exhaust: | 0.101" | ||
