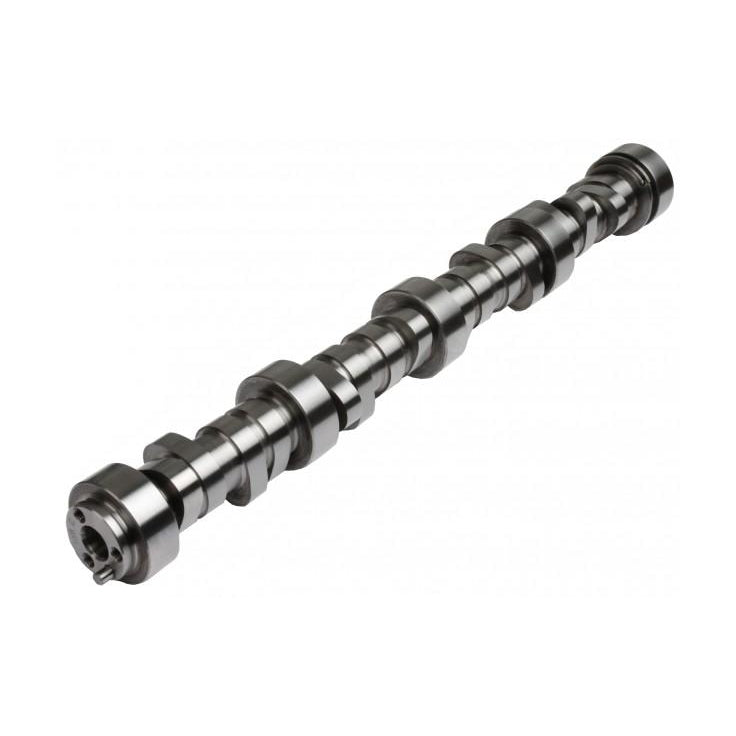

Kelford Cams RX108-B LS Solid Race Cam
Buy now pay later,no extra cost!
Payments from $80.38 with

Note: Please check availability with us before ordering.
252/260 Degrees duration @ 0.050" cam lift, .660"/.660" lift.
Additional Information
Solid roller lifter cam for 6.0-7.0L+ engines. Suits top street or super sedan style racing. Suits heavy full body car with well modified engine, 10:1+ compression, high stall with trans brake or manual transmission. Carburettor or EFI.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| CHEVROLET | LS Series V8 | RX108-B | |||||
| Valve Clearance: | Intake: | 0.020" | Set | HOT | at the | VALVE | |
| Exhaust: | 0.020" | Set | HOT | at the | VALVE | ||
| Cam Lift: | Intake: | 0.400" | Exhaust: | 0.400" | |||
| Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
| Nett Valve Lift: | Intake: | 0.660" | Exhaust: | 0.660" | |||
| Advertised Duration @ | 0.020" | Intake: | 300 | Exhaust: | 308 | ||
| Duration @ | .050" CAM LIFT | Intake: | 262 | Exhaust: | 270 | ||
| Timing @ | .050" CAM LIFT | IVO: | 24 BTDC | EVO: | 64 BBDC | ||
| IVC: | 58 ABDC | EVC: | 26 ATDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 109 | |||
| CAM | Lift @ TDC | Intake: | 0.129" | Exhaust: | 0.124" | ||
