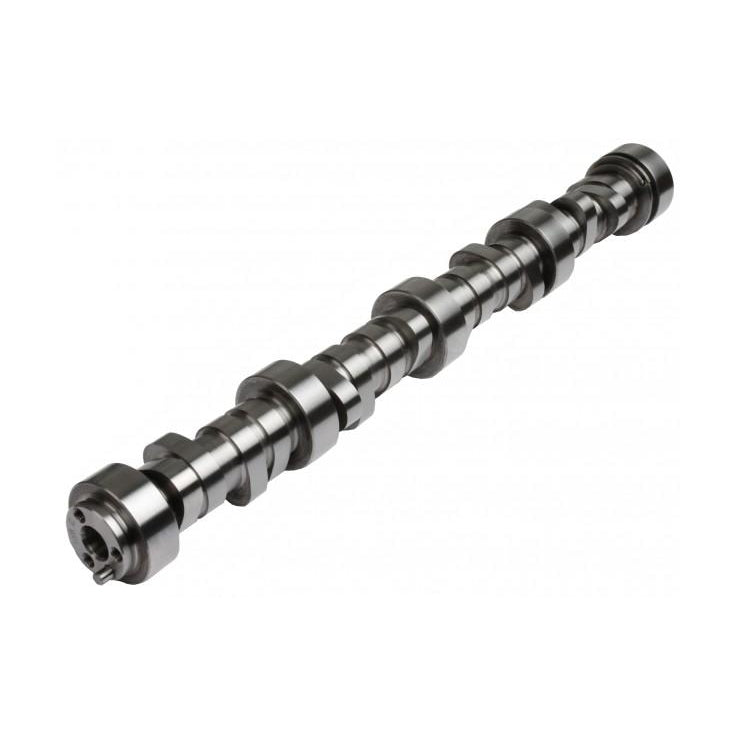

Kelford Cams RX108-A11 LS Solid Race Cam
by Kelford Cams
$803.85 NZD
SKU KCRX108-A11
Buy now pay later,no extra cost!
Payments from $80.38 with
Enjoy now. Pay Later. Interest free. Learn More
Note: Please check availability with us before ordering.
242/256 Degrees duration @ 0.050" cam lift, .650"/.650" lift.
Additional Information
Solid roller lifter cam to suit multiple motorsport applications: drift, circuit, muscle car, street / strip. Tight separation for massive midrange torque. Wide lobe separation to extend top end RPM
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| CHEVROLET | LS Series V8 | RX108-A11 | |||||
| Valve Clearance: | Intake: | 0.020" | Set | HOT | at the | VALVE | |
| Exhaust: | 0.020" | Set | HOT | at the | VALVE | ||
| Cam Lift: | Intake: | 0.394" | Exhaust: | 0.394" | |||
| Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
| Nett Valve Lift: | Intake: | 0.650" | Exhaust: | 0.650" | |||
| Advertised Duration @ | 0.020" | Intake: | 288 | Exhaust: | 304 | ||
| Duration @ | .050" CAM LIFT | Intake: | 252 | Exhaust: | 266 | ||
| Timing @ | .050" CAM LIFT | IVO: | 16 BTDC | EVO: | 65 BBDC | ||
| IVC: | 56 ABDC | EVC: | 21 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 112 | |||
| CAM | Lift @ TDC | Intake: | 0.100" | Exhaust: | 0.116" | ||
