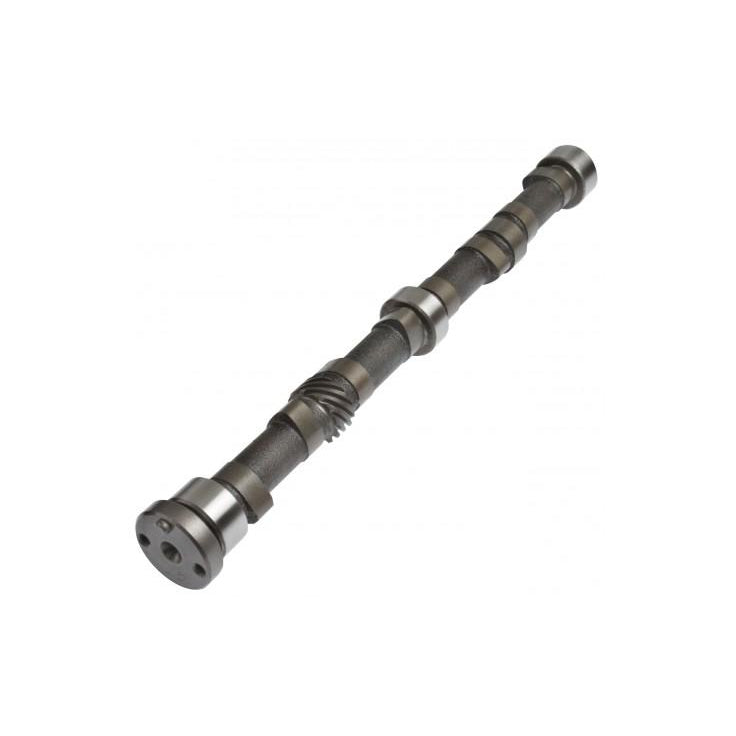

Kelford Cams 150-J Ford 109E - 116E Performance Cam
Buy now pay later,no extra cost!
Payments from $58.53 with

Note: Please check availability with us before ordering.
253/253 Degrees duration @ 0.050" cam lift, .430"/.430" lift.
Additional Information
Formula Junior single seater cam (between A6 & A8).
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| FORD | 109E - 116E Pushrod Engine | 150-J | |||||
| Valve Clearance: | Intake: | 0.016" | Set | HOT | at the | VALVE | |
| Exhaust: | 0.016" | Set | HOT | at the | VALVE | ||
| Cam Lift: | Intake: | 0.290" | Exhaust: | 0.290" | |||
| Rocker Ratio: | Intake: | 1.54 | Exhaust: | 1.54 | |||
| Nett Valve Lift: | Intake: | 0.430" | Exhaust: | 0.430" | |||
| Advertised Duration @ | 0.015" | Intake: | 310 | Exhaust: | 310 | ||
| Duration @ | .050" CAM LIFT | Intake: | 253 | Exhaust: | 253 | ||
| Timing @ | .050" CAM LIFT | IVO: | 23.5 BTDC | EVO: | 49.5 BBDC | ||
| IVC: | 49.5 ABDC | EVC: | 23.5 ATDC | ||||
| Suggested Centre Lines: | Intake: | 103 | Exhaust: | 103 | |||
| VALVE | Lift @ TDC | Intake: | 0.145" | Exhaust: | 0.145" | ||
