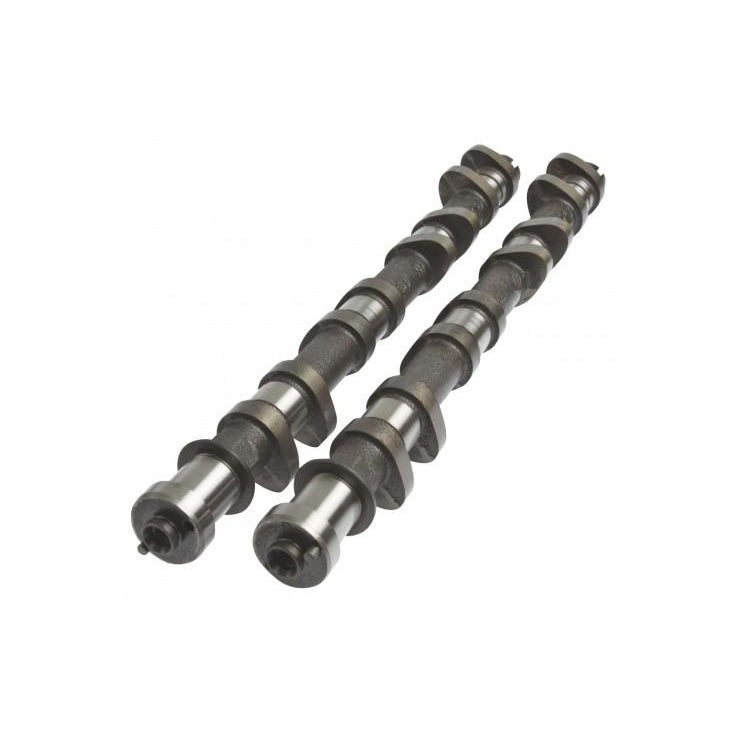

Kelford Cams 2-195-TC Toyota 3S-GE (Gen 2) Shim Over Bucket Turbo Performance Cam

$1,206.35 NZD
SKU KC2-195-TC
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

278/278 Degrees advertised duration. 9.90mm/9.90mm lift.

Additional Information:

3S-GTE Turbo drag racing cams for high HP and top end RPM.

Camshaft Information:

Engine Make: Engine Model: Part Number:
TOYOTA 3S-GE (Gen 2) 2-195-TC
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.15mm Exhaust: 10.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.90mm Exhaust: 9.90mm
Advertised Duration @ 0.30mm Intake: 278 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: 15 BTDC EVO: 55 BBDC
    IVC: 45 ABDC EVC: 5 ATDC
Suggested Centre Lines:   Intake: 105 Exhaust: 115
VALVE Lift @ TDC Intake: 2.58mm Exhaust: 1.47
