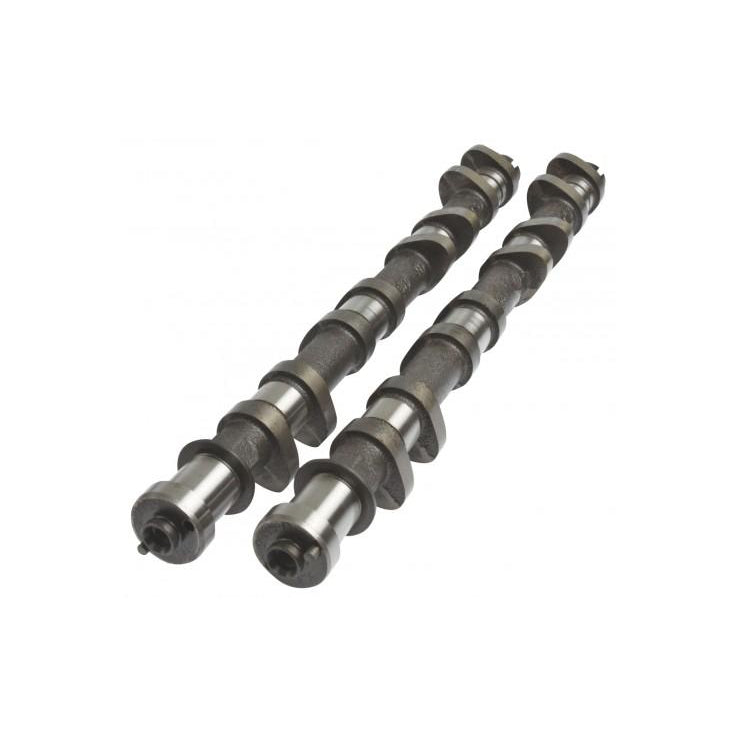

Kelford Cams 2-195-TB Toyota 3S-GE (Gen 2) Shim Over Bucket Turbo Performance Cam

$1,206.35 NZD
SKU KC2-195-TB
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

270/270 Degrees advertised duration. 9.60mm/9.60mm lift.

Additional Information:

3S-GTE Turbo cams for serious street performance. Turbo and ECU upgrade required.

Camshaft Information:

Engine Make: Engine Model: Part Number:
TOYOTA 3S-GE (Gen 2) 2-195-TB
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.85mm Exhaust: 9.90mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.60mm Exhaust: 9.60mm
Advertised Duration @ 0.30mm Intake: 270 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 52 BBDC
    IVC: 44 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 1.80mm Exhaust: 0.95
