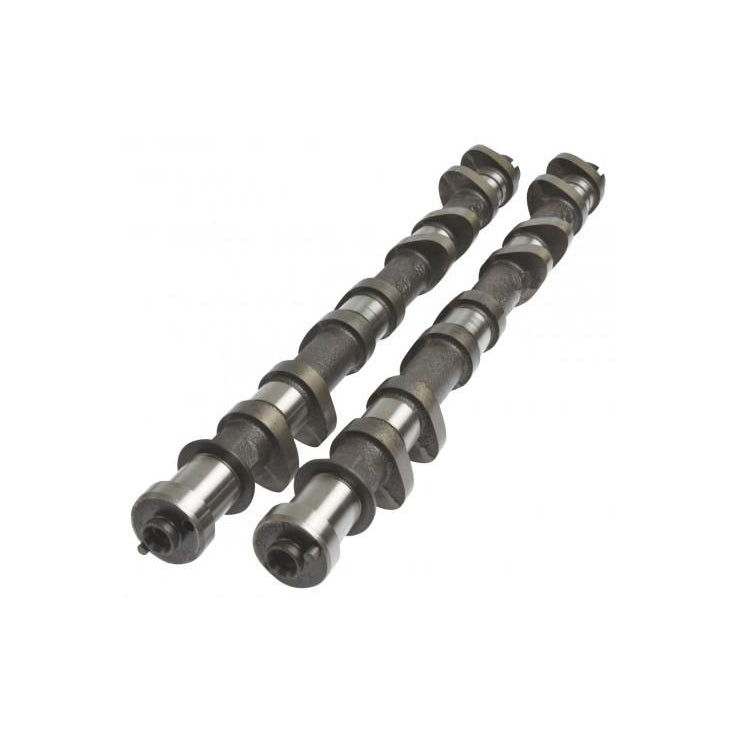

Kelford Cams 2-195-TA Toyota 3S-GE (Gen 2) Shim Over Bucket Turbo Performance Cam

$1,206.35 NZD
SKU KC2-195-TA
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

258/258 Degrees advertised duration. 9.30mm/9.30mm lift.

Additional Information:

258/258 Degrees advertised duration. 9.30mm/9.30mm lift.

Camshaft Information:

Engine Make: Engine Model: Part Number:
TOYOTA 3S-GE (Gen 2) 2-195-TA
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.55mm Exhaust: 9.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.30mm Exhaust: 9.30mm
Advertised Duration @ 0.30mm Intake: 258 Exhaust: 258
Duration @ 1.00mm VALVE LIFT Intake: 222 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 1 BTDC EVO: 43 BBDC
    IVC: 41 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 1.13mm Exhaust: 0.85
