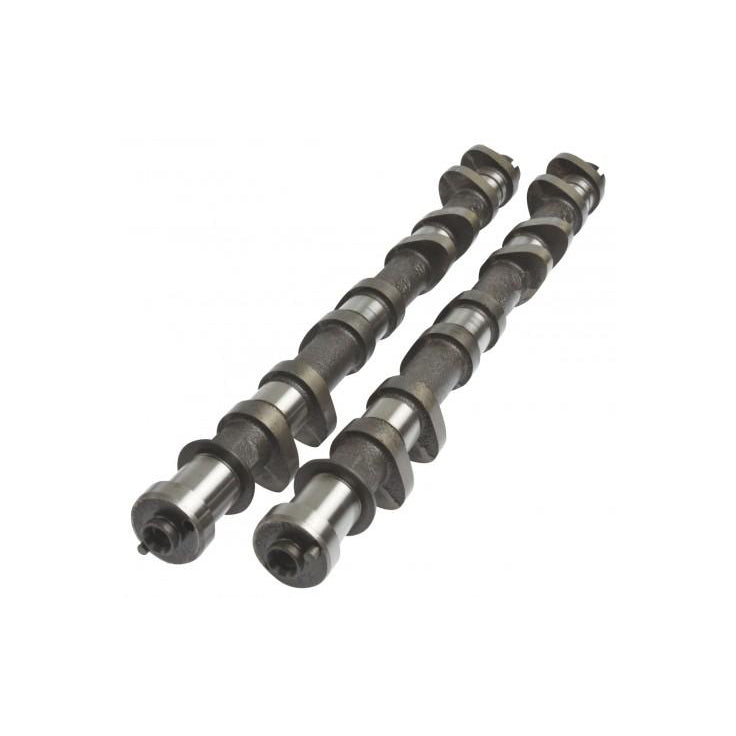

Kelford Cams 2-195-A Toyota 3S-GE (Gen 2) Shim Over Bucket Performance Cam
Buy now pay later,no extra cost!
Payments from $120.63 with

Note: Please check availability with us before ordering.
276/270 Degrees advertised duration. 9.90mm/9.60mm lift.
Additional Information:
Ultimate street or club race cams.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 3S-GE (Gen 2) | 2-195-A | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.15mm | Exhaust: | 9.90mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.90mm | Exhaust: | 9.60mm | |||
| Advertised Duration @ | 0.30mm | Intake: | 276 | Exhaust: | 270 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 240 | Exhaust: | 232 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 17 BTDC | EVO: | 43 BBDC | ||
| IVC: | 43 ABDC | EVC: | 9 ATDC | ||||
| Suggested Centre Lines: | Intake: | 103 | Exhaust: | 107 | |||
| VALVE | Lift @ TDC | Intake: | 2.80mm | Exhaust: | 1.92 | ||
