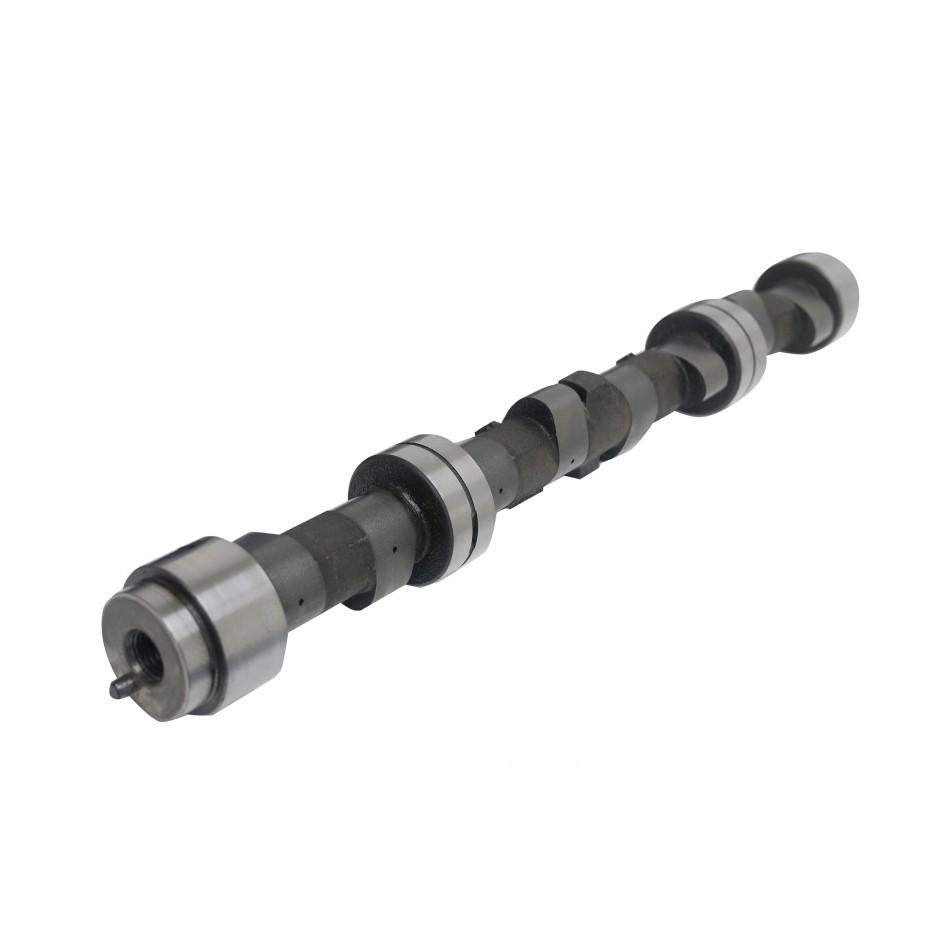

Kelford Cams 185-T Nissan L16-L20 OHC (4cyl) Performance Camshaft
Buy now pay later,no extra cost!
Payments from $68.31 with

Note: Please check availability with us before ordering.
264/264 Degrees advertised duration, 10.90mm/10.90mm lift.
Additional Information:
High performance cam made on wider lobe separation to reduce overlap for turbocharged applications.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| NISSAN | L SERIES | 185-T | ||||
| Valve Clearance: | Intake: | 0.20mm | Set | HOT | at the | CAM |
| Exhaust: | 0.20mm | Set | HOT | at the | CAM | |
| Cam Lift: | Intake: | 7.47mm | Exhaust: | 7.47mm | ||
| Rocker Ratio: | Intake: | 1.5 | Exhaust: | 1.5 | ||
| Nett Valve Lift: | Intake: | 10.90mm | Exhaust: | 10.90mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 232 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 8 BTDC | EVO: | 52 BBDC | |
| IVC: | 44 ABDC | EVC: | 0 TDC | |||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 116 | ||
| VALVE | Lift @ TDC | Intake: | 1.93mm | Exhaust: | 1 |
