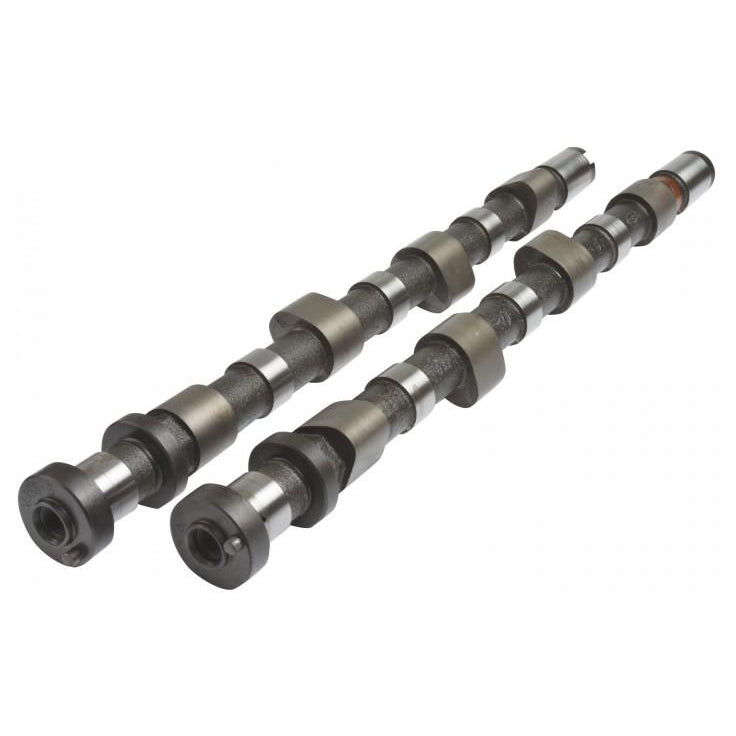

Kelford Cams 186-A Nissan GTi-R RNN14 (Mech lifter) Turbo Performance Cam

$907.35 NZD
SKU KC186-A
Buy now pay later,no extra cost!

Payments from $90.73 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

270/270 Degrees advertised duration, 11.78mm/11.70mm lift.

Additional Information:

270/270 Degrees advertised duration, 11.78mm/11.70mm lift. Wild Gti-R street performance cams to suits turbo and ECU upgrade.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR20/GTiR (solid lifter) TURBO 186-A
Valve Clearance: Intake: 0.15mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 7.75mm Exhaust: 7.75mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 11.78mm Exhaust: 11.70mm
Advertised Duration @ 0.10mm Intake: 270 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 52 BBDC
    IVC: 44 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 1.80mm Exhaust: 0.95
