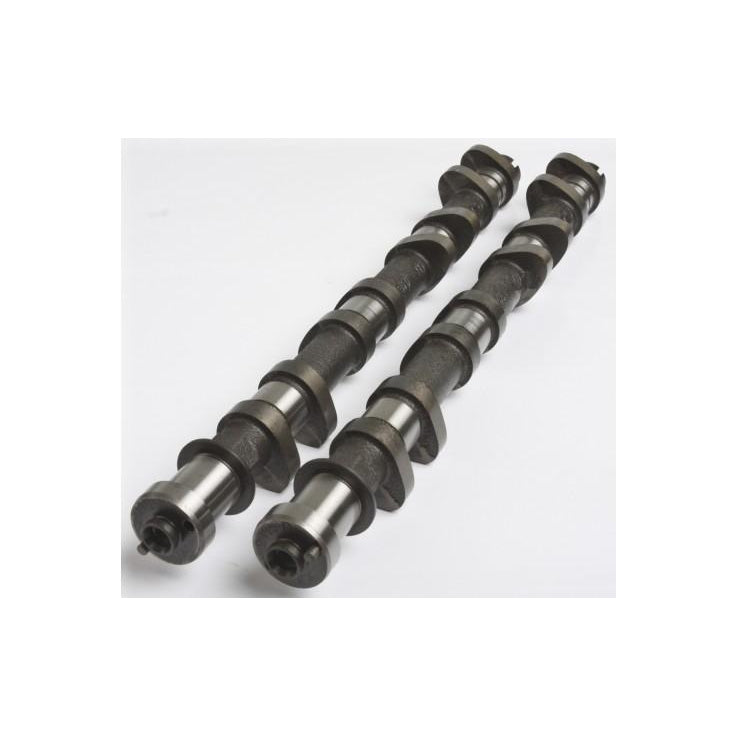

Kelford Cams 4-195-TB Toyota 3S-GE (Gen 4) Non VVTi

$1,206.35 NZD
SKU KC4-195-TB
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

272/272 Degrees advertised duration. 10.80mm/10.80mm lift.

Additional Information:

3S-GTE Turbo cams for well built engines with 450-600HP turbo.

Camshaft Information:

Engine Make:  Engine Model:  Part Number:



TOYOTA  3S-GE GEN4  4-195-TB



Valve Clearance:  Intake:  0.25mm  Set  COLD  at the  CAM
   Exhaust:  0.30mm  Set  COLD  at the  CAM






Cam Lift:     Intake:  11.05mm  Exhaust:  11.10mm
Rocker Ratio:     Intake:  1 Exhaust:  1
Nett Valve Lift:     Intake:  10.80mm  Exhaust:  10.80mm
Advertised Duration @  0.10mm  Intake:  272 Exhaust:  272
Duration @  1.00mm VALVE LIFT  Intake:  232 Exhaust:  232
Timing @  1.00mm VALVE LIFT  IVO:  8 BTDC  EVO:  50 BBDC
      IVC:  44 ABDC  EVC:  2 ATDC
Suggested Centre Lines:     Intake:  108 Exhaust:  114
VALVE  Lift @ TDC  Intake:  1.88mm  Exhaust:  1.15
