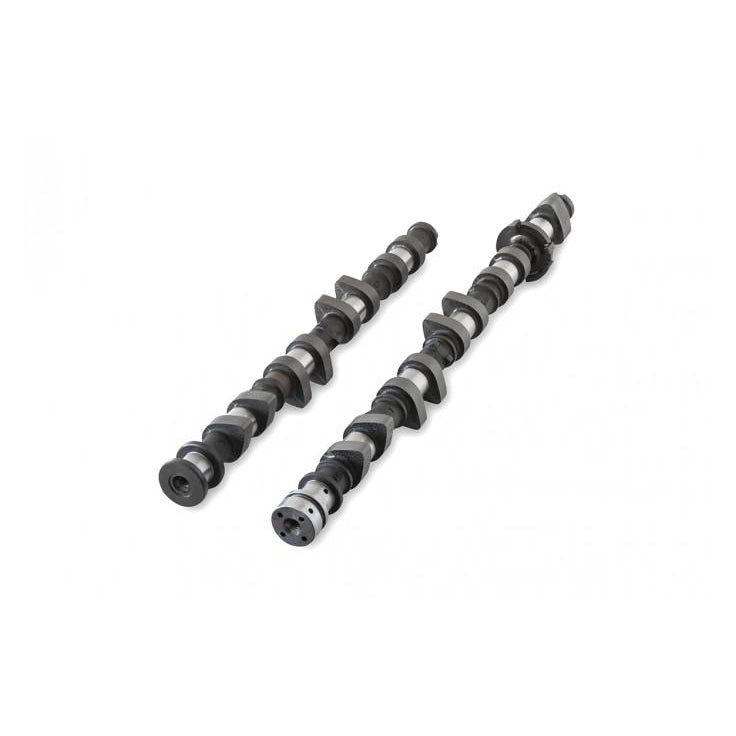

Kelford Cams 247-D Mazda 2.3L Disi Turbo (L3-VDT) Drag Cams

$1,191.40 NZD
SKU KC247-D
Buy now pay later,no extra cost!

Payments from $119.14 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

282/292 Degrees advertised duration, 11.25mm/11.25mm lift.

Additional Information:

Stage 4 Drag Cams, best suited for professionally built engines. 750-1000HP.

Camshaft Information:



Engine Make: Engine Model: Part Number:
MAZDA 2.3 DISI 247-D
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.55mm Exhaust: 11.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.25mm Exhaust: 11.25mm
Advertised Duration @ 0.10mm Intake: 282 Exhaust: 292
Duration @ 1.00mm VALVE LIFT Intake: 242 Exhaust: 248
Timing @ 1.00mm VALVE LIFT IVO: 9 BTDC EVO: 62 BBDC
    IVC: 53 ABDC EVC: 6 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 1.96mm Exhaust: 1.56
