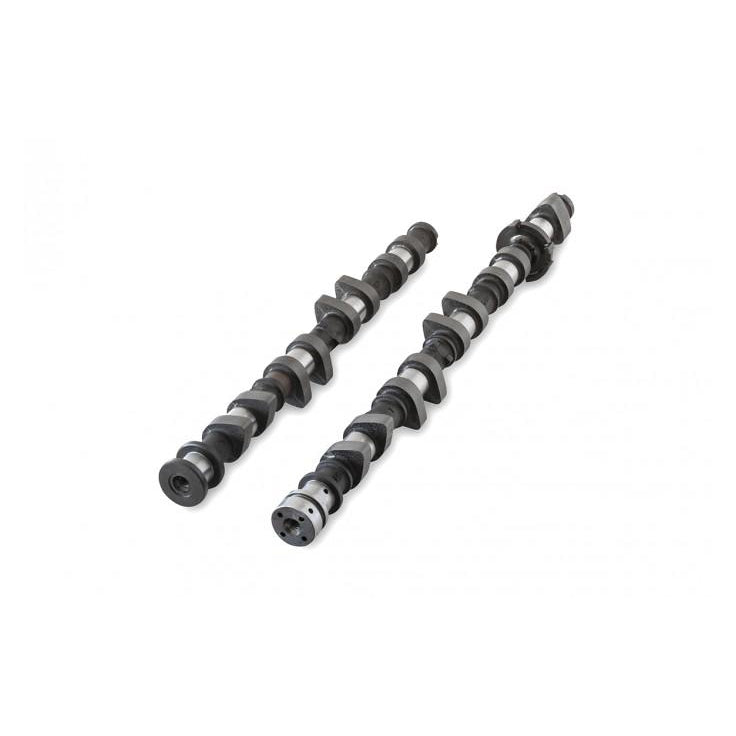

Kelford Cams 247-C Mazda 2.3L Disi Turbo (L3-VDT)

$1,191.40 NZD
SKU KC247-C
Buy now pay later,no extra cost!

Payments from $119.14 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

266/276 Degrees advertised duration, 10.55mm/10.55mm lift.

Additional Information:

Stage 3 turbo cams, 500-750HP range, great with E85.

Camshaft Information:

Engine Make: Engine Model: Part Number:
MAZDA 2.3 DISI 247-C
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 10.85mm Exhaust: 10.90mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.55mm Exhaust: 10.55mm
Advertised Duration @ 0.10mm Intake: 266 Exhaust: 276
Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 16 ATDC EVO: 52 BBDC
    IVC: 64 ABDC EVC: 4 ATDC
Suggested Centre Lines:   Intake: 130 Exhaust: 114
VALVE Lift @ TDC Intake: 0.16mm Exhaust: 1.37
