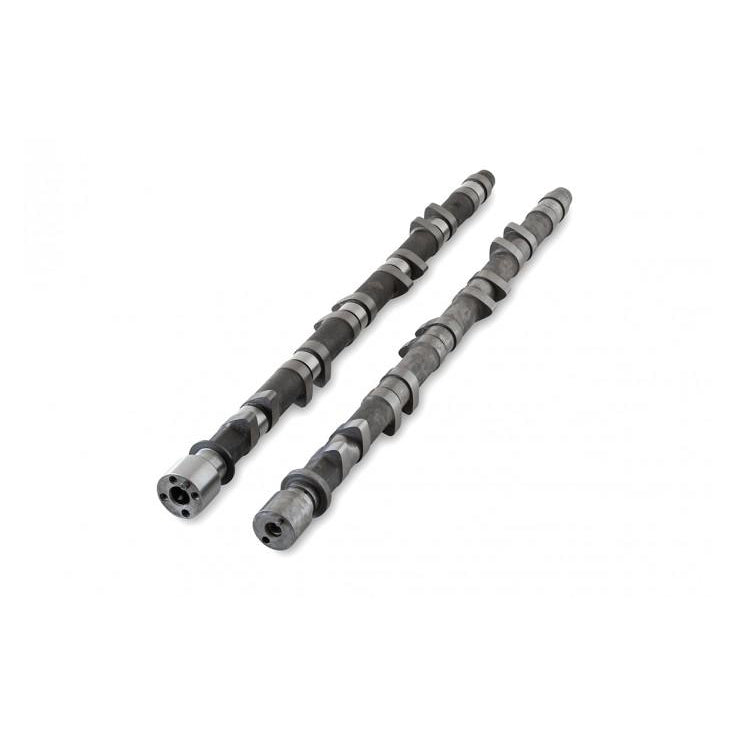

Kelford Cams 246-B Nissan RB25 NVCS Performance Cam Set
Buy now pay later,no extra cost!
Payments from $147.08 with

Note: Please check availability with us before ordering.
262/272 Degrees advertised duration, 10.00mm/10.00mm lift.
Additional Information:
RB 25 NVCS 272 Degree High lift Race profiles for high performance race builds. Machining is needed for cam swing. Must use KVS25R spring.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | RB25 NVCS | 246-B | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 10.00mm | Exhaust: | 10.00mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 10.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 272 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 224 | Exhaust: | 232 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 51 BBDC | |||
| IVC: | EVC: | 1 BTDC | |||||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | Exhaust: | ||||
