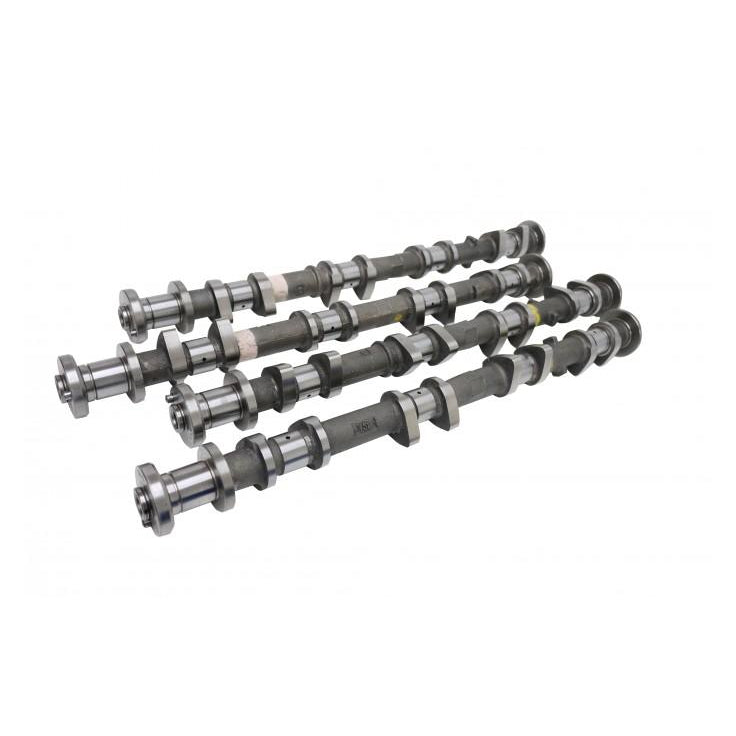

Kelford Cams 237-T3 Nissan VK56DE Stage 3 Turbo Performance Cam Set
Buy now pay later,no extra cost!
Payments from $240.92 with

Note: Please check availability with us before ordering.
VK56 cams to suit well built twin turbo drag racing engine, suits E85+, requires KVS56-BT valve springs
294&288/294 Degrees advertised duration, 11.95mm & 11.50mm/11.95mm lift.
Additional Information:
VK56 cams to suit well built twin turbo drag racing engine, suits E85+, requires KVS56-BT valve springs
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | VK56 | 237-T3 | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 12.20mm | Exhaust: | 12.25mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.95mm | Exhaust: | 11.95mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 294 | Exhaust: | 294 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 252 | Exhaust: | 252 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 66 BBDC | ||
| IVC: | 60 ABDC | EVC: | 6 ATDC | ||||
| Suggested Centre Lines: | Intake: | 114 | Exhaust: | 120 | |||
| VALVE | Lift @ TDC | Intake: | 2.14mm | Exhaust: | 1.47 | ||
