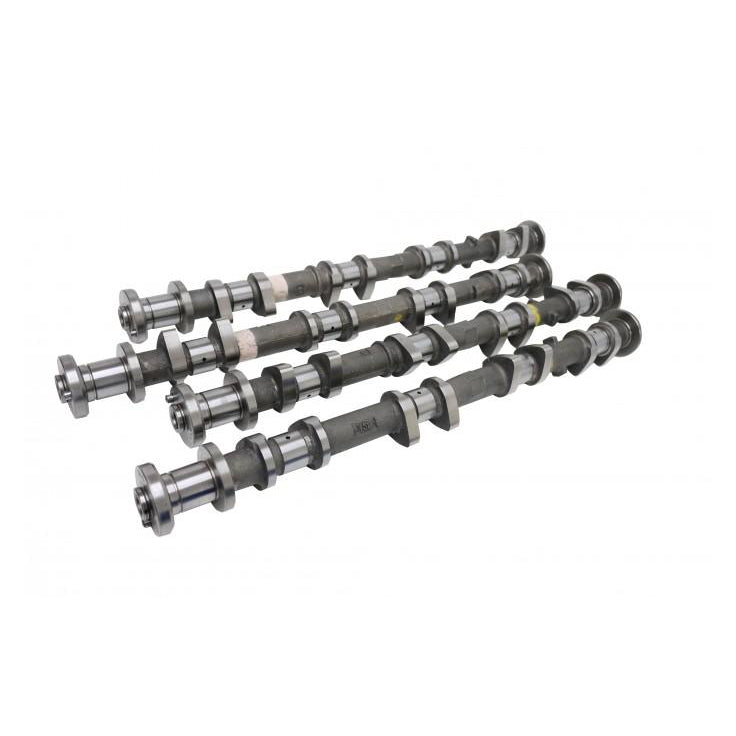

Kelford Cams 237-T2 Nissan VK56DE Stage 2 Turbo Performance Cam Set

$2,409.25 NZD
SKU KC237-T2
Buy now pay later,no extra cost!

Payments from $240.92 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

282&274/280 Degrees advertised duration, 11.50mm & 11.05mm/10.90mm lift.

Additional Information:

VK56 cams to suit single or twin turbo street / strip or marine applications, requires KVS56-BT valve springs

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN VK56 237-T2
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.75mm Exhaust: 11.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.50mm Exhaust: 10.90mm
Advertised Duration @ 0.10mm Intake: 282 Exhaust: 280
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: 6 BTDC EVO: 57 BBDC
    IVC: 54 ABDC EVC: 3 ATDC
Suggested Centre Lines:   Intake: 114 Exhaust: 117
VALVE Lift @ TDC Intake: 1.73mm Exhaust: 1.27
