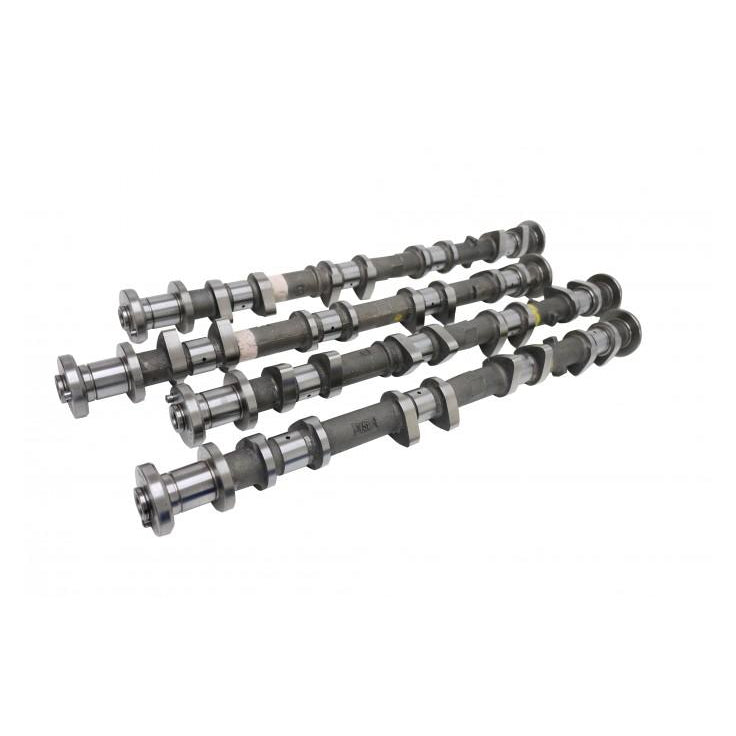

Kelford Cams 237-T1 Nissan VK56DE Stage 1 Turbo Cam Set
Buy now pay later,no extra cost!
Payments from $240.92 with

Note: Please check availability with us before ordering.
272&264/264 Degrees advertised duration, 10.70mm & 10.55mm/10.55mm lift.
Additional Information:
VK56 Stage 1 turbo cams, suits engines designed to run in the 550-750hp range. Requires KVS56-BT valve springs
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | VK56 | 237-T1 | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.95mm | Exhaust: | 10.85mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 10.70mm | Exhaust: | 10.55mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 224 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 3 BTDC | EVO: | 47 BBDC | ||
| IVC: | 49 ABDC | EVC: | 3 BTDC | ||||
| Suggested Centre Lines: | Intake: | 113 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 1.35mm | Exhaust: | 0.66 | ||
