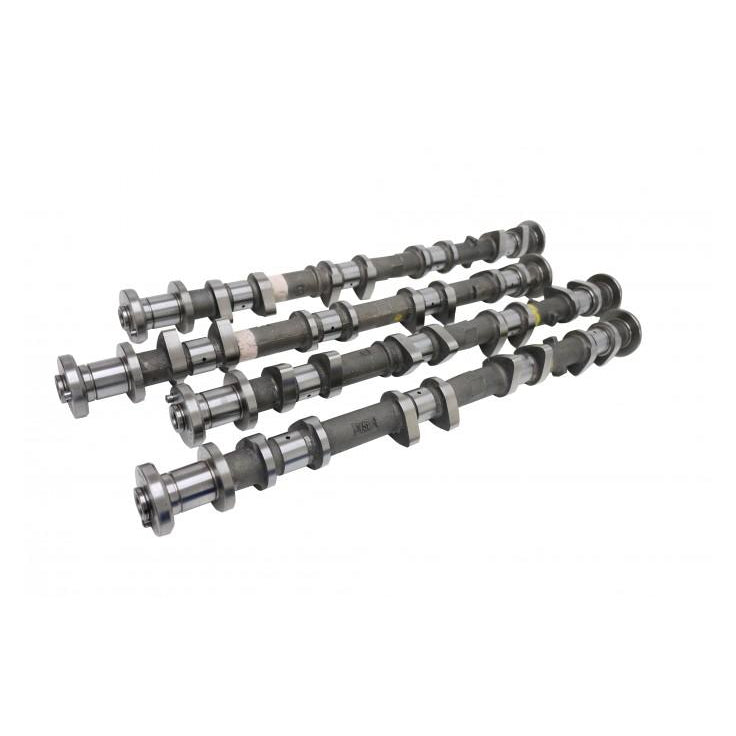

Kelford Cams 237-C Nissan VK56DE Performance Cam Set

$2,409.25 NZD
SKU KC237-C
Buy now pay later,no extra cost!

Payments from $240.92 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

300&290/288 Degrees advertised duration, 12.55mm & 11.55mm/11.50mm lift.

Additional Information:

Racing cams to suit high compression, well modified VK56-DE racing engines. These cams deliver good midrange and top end power.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN VK56 237-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 12.80mm Exhaust: 11.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 12.55mm Exhaust: 11.55mm
Advertised Duration @ 0.10mm Intake: 300 Exhaust: 288
Duration @ 1.00mm VALVE LIFT Intake: 260 Exhaust: 248
Timing @ 1.00mm VALVE LIFT IVO: 29 BTDC EVO: 50 BBDC
    IVC: 51 ABDC EVC: 18 ATDC
Suggested Centre Lines:   Intake: 101 Exhaust: 106
VALVE Lift @ TDC Intake: 5.33mm Exhaust: 3.33
