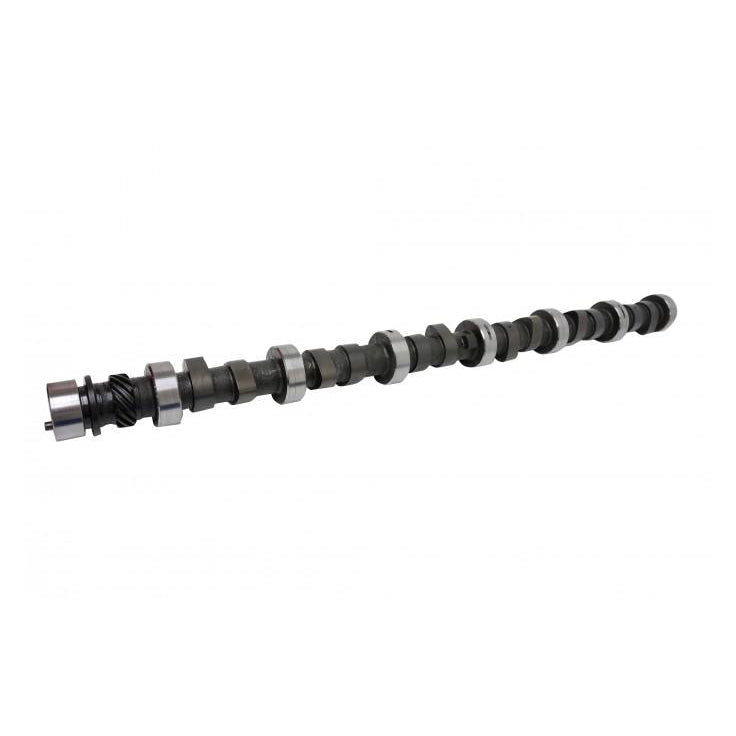

Kelford Cams 226-IS Nissan RB30 High Performance Camshaft

$1,022.35 NZD
SKU KC226-IS
Buy now pay later,no extra cost!

Payments from $102.23 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

304/314 Degrees advertised duration, 13.70mm/13.85mm lift.

Additional Information:

Solid lifter cam for top end HP. This cam suits well built competition engines with large turbo, high stall, nitrous etc. for drag racing applications. Primary lobe specification is / Degrees advertised duration, lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN RB30 226-IS
Valve Clearance: Intake: 0.40mm Set COLD at the VALVE
  Exhaust: 0.40mm Set COLD at the VALVE

Cam Lift:   Intake: 8.81mm Exhaust: 8.91mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 13.70mm Exhaust: 13.85mm
Advertised Duration @ 0.10mm Intake: 304 Exhaust: 314
Duration @ 1.00mm VALVE LIFT Intake: 264 Exhaust: 267
Timing @ 1.00mm VALVE LIFT IVO: 20 BTDC EVO: 71.5 BBDC
    IVC: 64 ABDC EVC: 15.5 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 2.81mm Exhaust: 2.51
