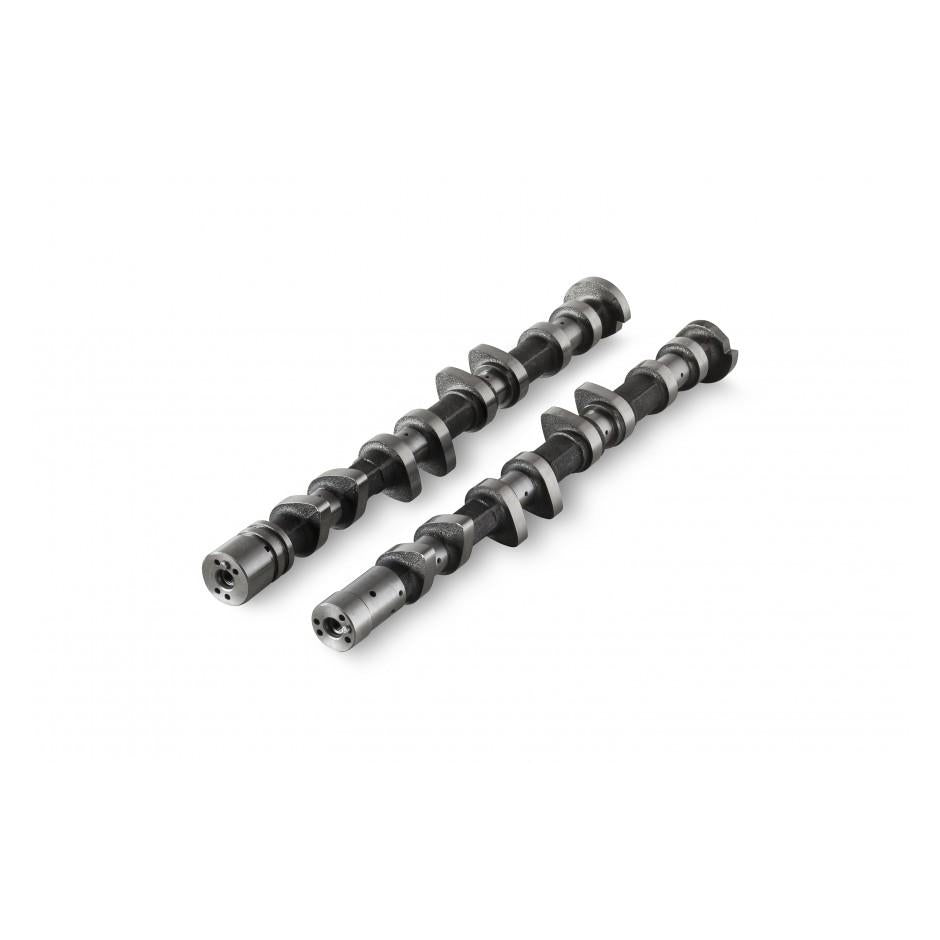

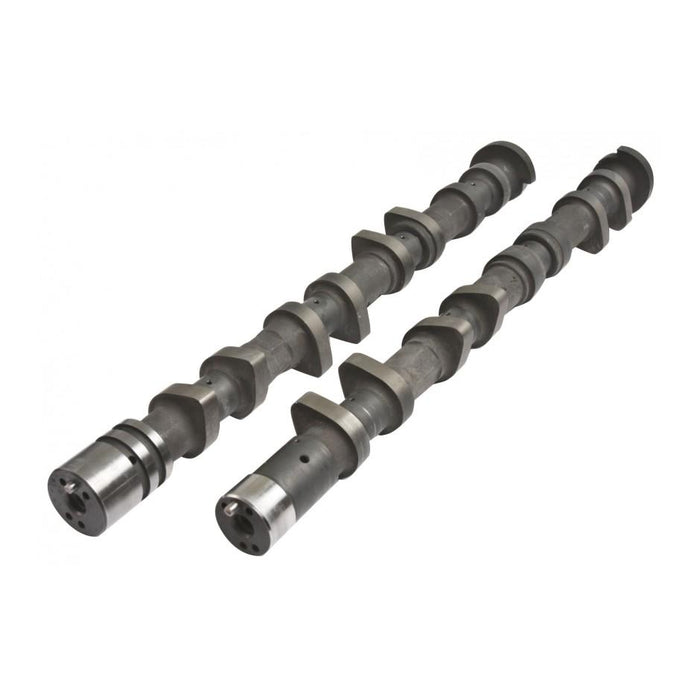

Kelford Cams 214-R Mitsubishi EVO X Cams for Restrictor motor

$1,206.35 NZD
SKU KC214-R
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

260&254/262 Degrees advertised duration, 10.00mm 9.75mm/10.00mm lift.

Additional Information:

Cams to suit 36mm restricted rally motors. Featuring our split lobe design for superior efficiency. Requires the use of our KVS11 valve spring set.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
MITSUBISHI EVO X 214-R
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 10.25mm Exhaust: 10.35mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.00mm Exhaust: 10.00mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 262
Duration @ 1.00mm VALVE LIFT Intake: 214 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: EVO:
    IVC: EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
Lift @ TDC Intake: Exhaust:
