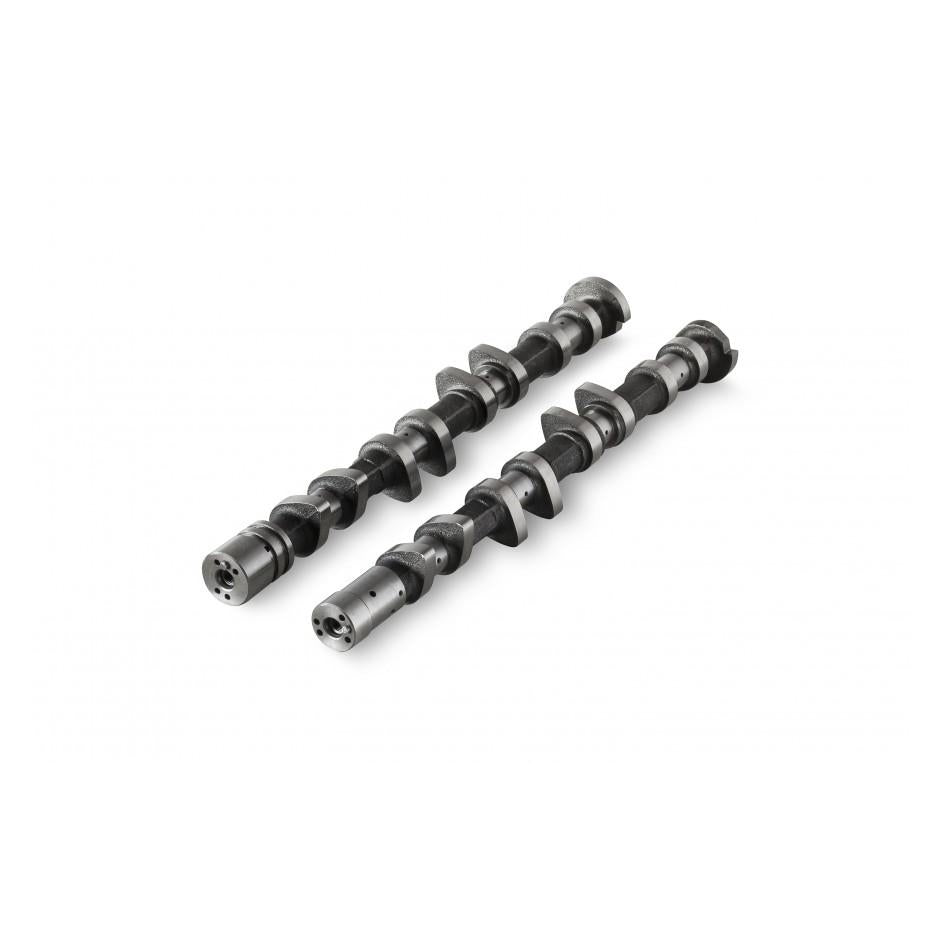

Kelford Cams 214-D Mitsubishi EVO X Drag Racing Cams

$1,206.35 NZD
SKU KC214-D
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

282/288 Degrees advertised duration, 11.50mm/11.00mm lift.

Additional Information:

Stage 4 Drag Cams to suit Professionally built drag engines. Great on E85/Meth, 1000hp+ Cams for the serious user.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
MITSUBISHI EVO X 214-D
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.80mm Exhaust: 11.35mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.50mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 282 Exhaust: 288
Duration @ 1.00mm VALVE LIFT Intake: 242 Exhaust: 248
Timing @ 1.00mm VALVE LIFT IVO: 9 BTDC EVO: 64 BBDC
    IVC: 53 ABDC EVC: 4 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 120
VALVE Lift @ TDC Intake: 2.00mm Exhaust: 1.4
