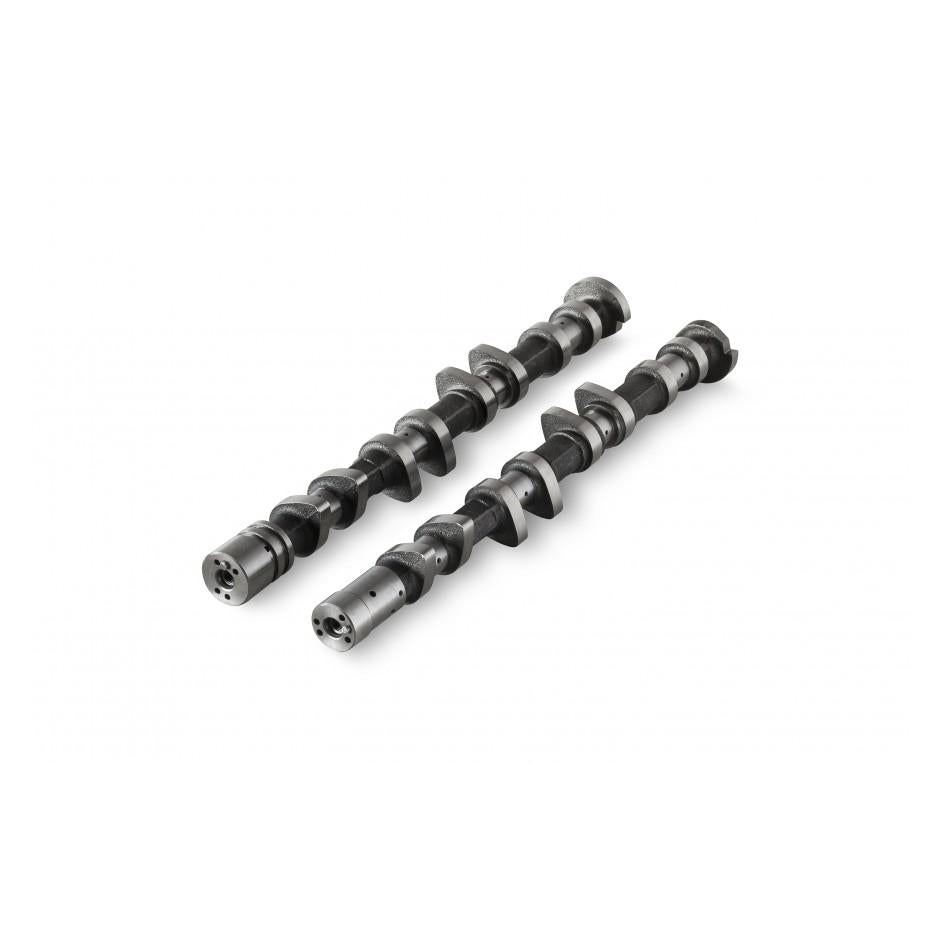

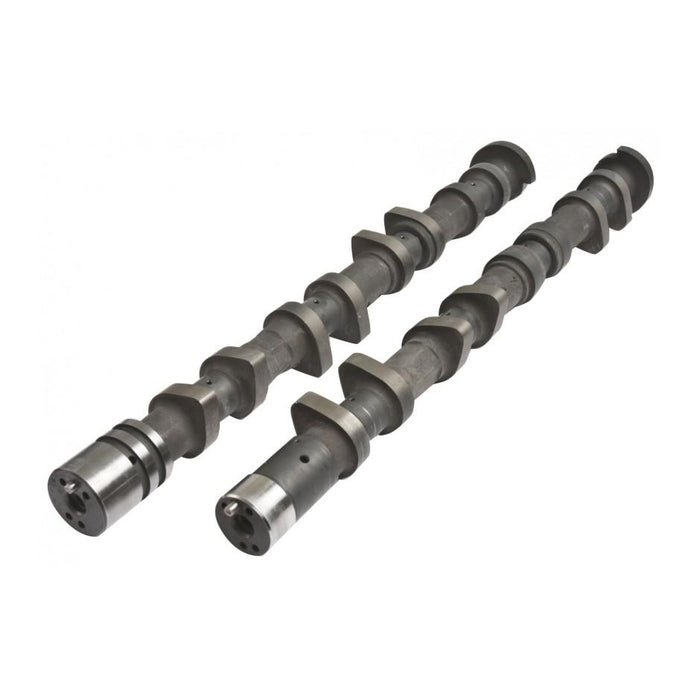

Kelford Cams 214-C Mitsubishi EVO X Cams

$1,206.35 NZD
SKU KC214-C
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

278/272 Degrees advertised duration, 11.50mm/11.00mm lift.

Additional Information:

Stage 3 racing cams to suit high HP engine builds,up to 32lb boost and 9000 RPM with the Kelford valve spring.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
MITSUBISHI EVO X 214-C
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.80mm Exhaust: 11.35mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.50mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 278 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 230
Timing @ 1.00mm VALVE LIFT IVO: EVO:
    IVC: EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
Lift @ TDC Intake: Exhaust:
