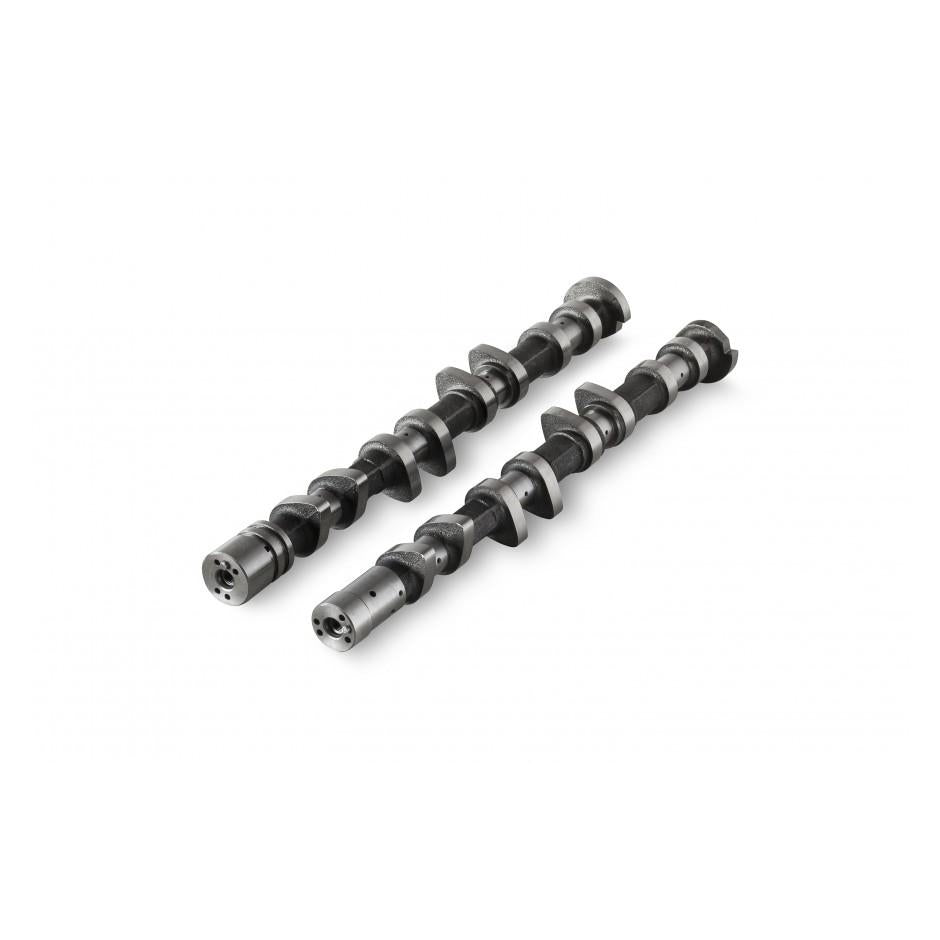

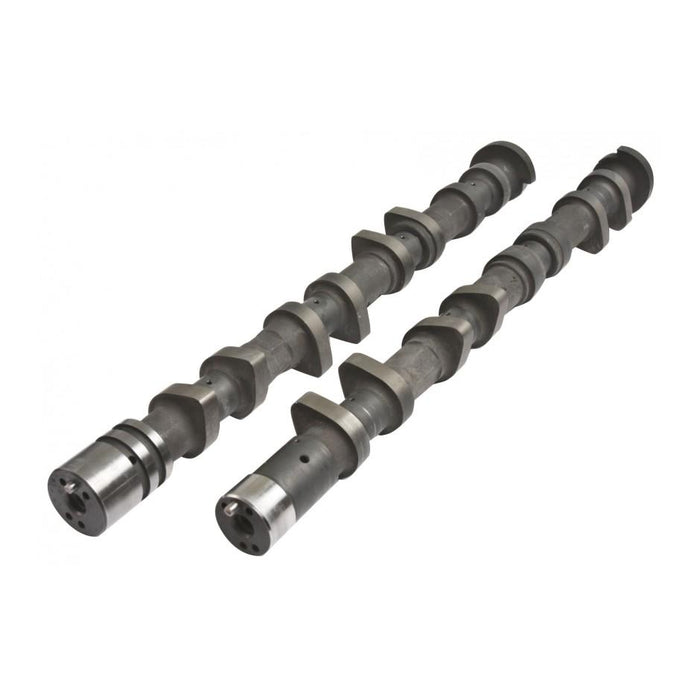

Kelford Cams 214-B Mitsubishi EVO X Cams

$1,206.35 NZD
SKU KC214-B
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

270/262 Degrees advertised duration, 11.00mm/10.00mm lift.

Additional Information:

Stage 2 high performance cams. These suit 350-550HP engine builds, up to 32lbs boost and 9000 RPM with the Kelford valve spring.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
MITSUBISHI EVO X 214-B
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.30mm Exhaust: 10.35mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 10.00mm
Advertised Duration @ 0.10mm Intake: 270 Exhaust: 262
Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: EVO:
    IVC: EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
Lift @ TDC Intake: Exhaust:
