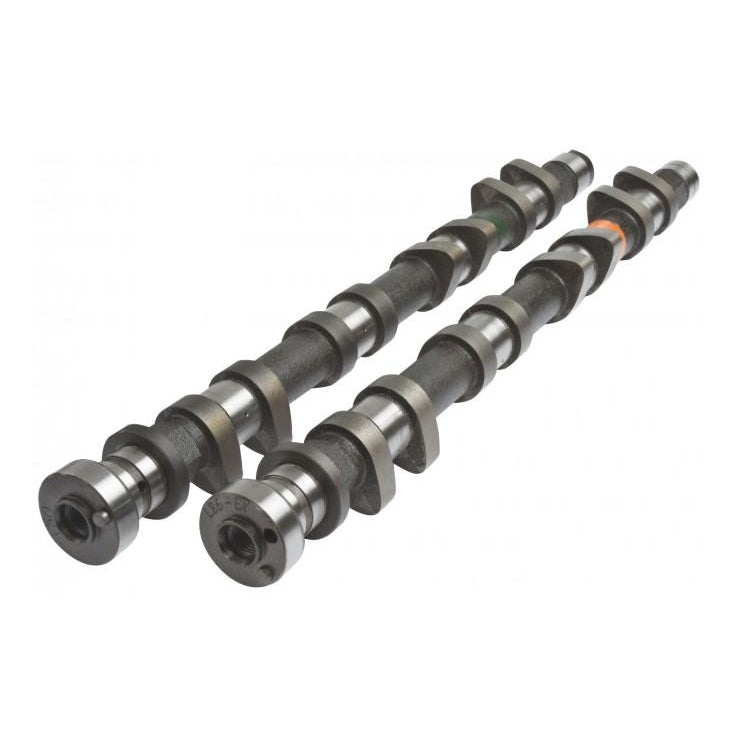

Kelford Cams 213-D Nissan KA24 Turbo Cam
Buy now pay later,no extra cost!
Payments from $120.63 with

Note: Please check availability with us before ordering.
282/288 Degrees advertised duration, 11.50mm/11.00mm lift.
Additional Information:
Stage 4 Cams to suit professionally built race engines, upwards of 1000+hp, great on alcohol base fuels. Head clearancing required.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| NISSAN | KA24 | 213-D | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 11.75mm | Exhaust: | 11.25mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 282 | Exhaust: | 288 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 244 | Exhaust: | 250 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 10 BTDC | EVO: | 63 BBDC | |
| IVC: | 54 ABDC | EVC: | 7 ATDC | |||
| Suggested Centre Lines: | Intake: | 112 | Exhaust: | 118 | ||
| VALVE | Lift @ TDC | Intake: | 2.05mm | Exhaust: | 1.67 |
