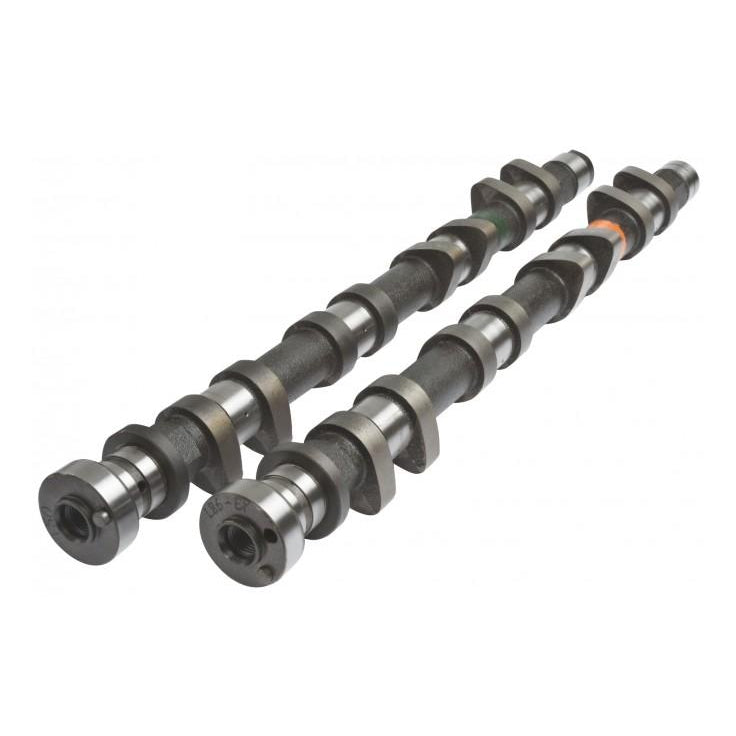

Kelford Cams 213-C Nissan KA24 278/11.00mm Turbo Cam

$1,206.35 NZD
SKU KC213-C
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

278/278 Degrees advertised duration, 11.00mm/11.00mm lift.

Additional Information:

Stage 3 cams to suit turbocharged engines. These cams require cylinder head clearancing in order for the cams to rotate.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN KA24 213-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.25mm Exhaust: 11.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 11.00mm
Advertised Duration @ 0.30mm Intake: 278 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 54 BBDC
    IVC: 48 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 116
VALVE Lift @ TDC Intake: 1.83mm Exhaust: 1.2
