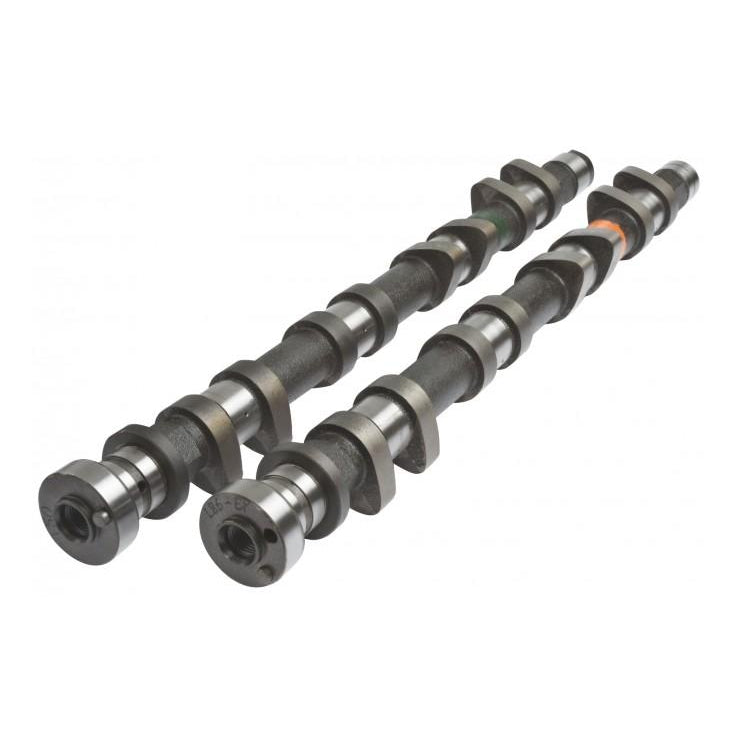

Kelford Cams 213-B Nissan KA24 272/10.00mm Turbo Cam
Buy now pay later,no extra cost!
Payments from $120.63 with

Note: Please check availability with us before ordering.
272/272 Degrees advertised duration, 9.80mm/9.80mm lift.
Stage 2 cams to suit turbocharged engines with over 400HP.
| Engine Make: | Engine Model: | Part Number: | ||||
| NISSAN | KA24 | 213-B | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 10.05mm | Exhaust: | 10.05mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 9.80mm | Exhaust: | 9.80mm | ||
| Advertised Duration @ | 0.30mm | Intake: | 272 | Exhaust: | 272 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 232 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 52 BBDC | |
| IVC: | 46 ABDC | EVC: | 0 TDC | |||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 116 | ||
| VALVE | Lift @ TDC | Intake: | 1.70mm | Exhaust: | 1.02 |
