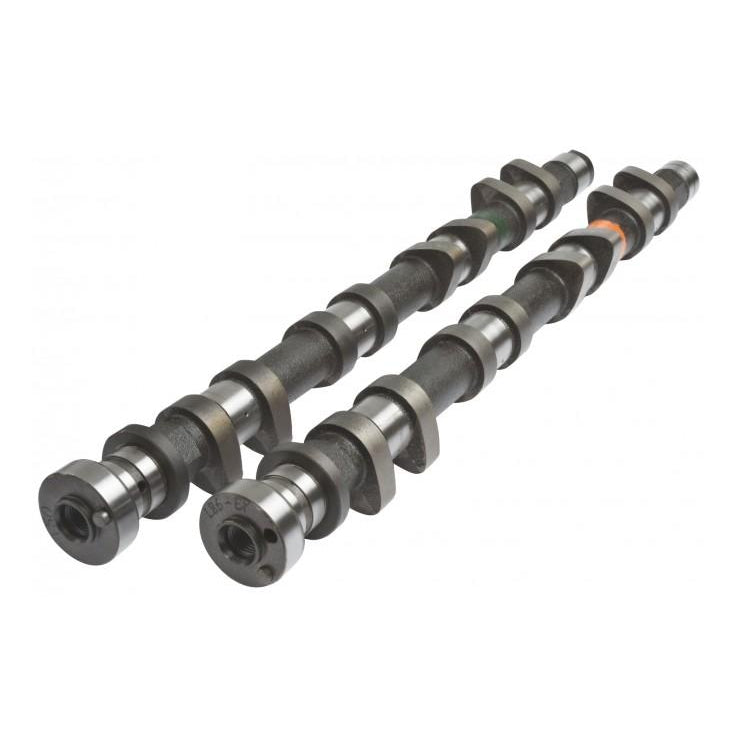

Kelford Cams 213-A Nissan KA24 Stage 1 Turbo Cam

$1,206.35 NZD
SKU KC213-A
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

260/260 Degrees advertised duration, 9.38mm/9.38mm lift.

Additional Information:

Stage 1 drop in cams for turbocharged or naturally aspirated applications.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN KA24 213-A
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 9.58mm Exhaust: 9.58mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.38mm Exhaust: 9.38mm
Advertised Duration @ 0.30mm Intake: 260 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 222 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 1 BTDC EVO: 43 BBDC
    IVC: 41 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 1.20mm Exhaust: 1
