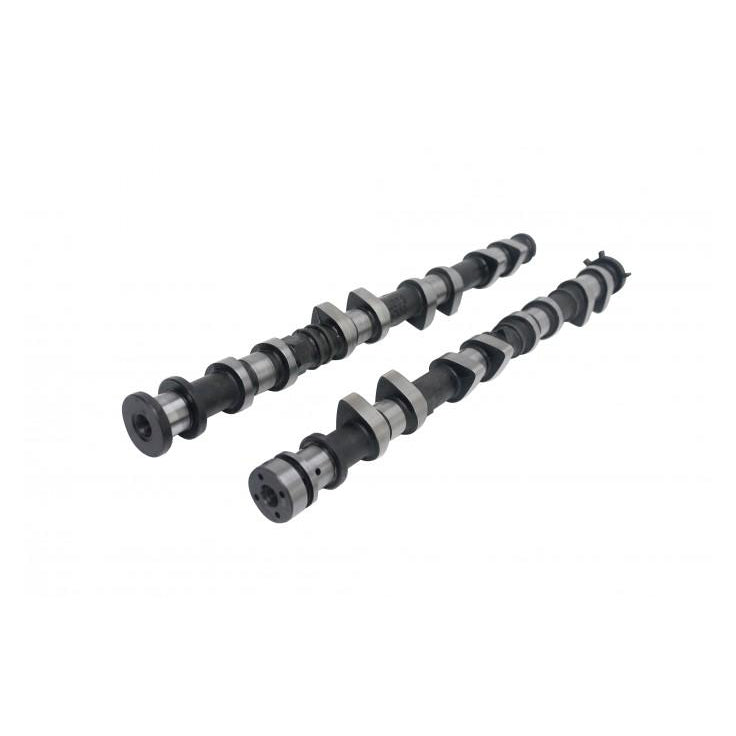

Kelford Cams 211-T Mazda MZR Billet Race Cams
Buy now pay later,no extra cost!
Payments from $120.63 with

Note: Please check availability with us before ordering.
264/264 Degrees advertised duration, 9.80mm/9.80mm lift.
Additional Information:
Stage 1 cams for turbocharged MZR engines (Non-DISI). Suits OEM valve spring if using 1bar boost or less.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| MAZDA | MZR VVT | 211-T | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.05mm | Exhaust: | 10.10mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.80mm | Exhaust: | 9.80mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 224 | Exhaust: | 224 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 48 BBDC | |||
| IVC: | EVC: | 4 BTDC | |||||
| Suggested Centre Lines: | Intake: | Vari | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.66 | |||
