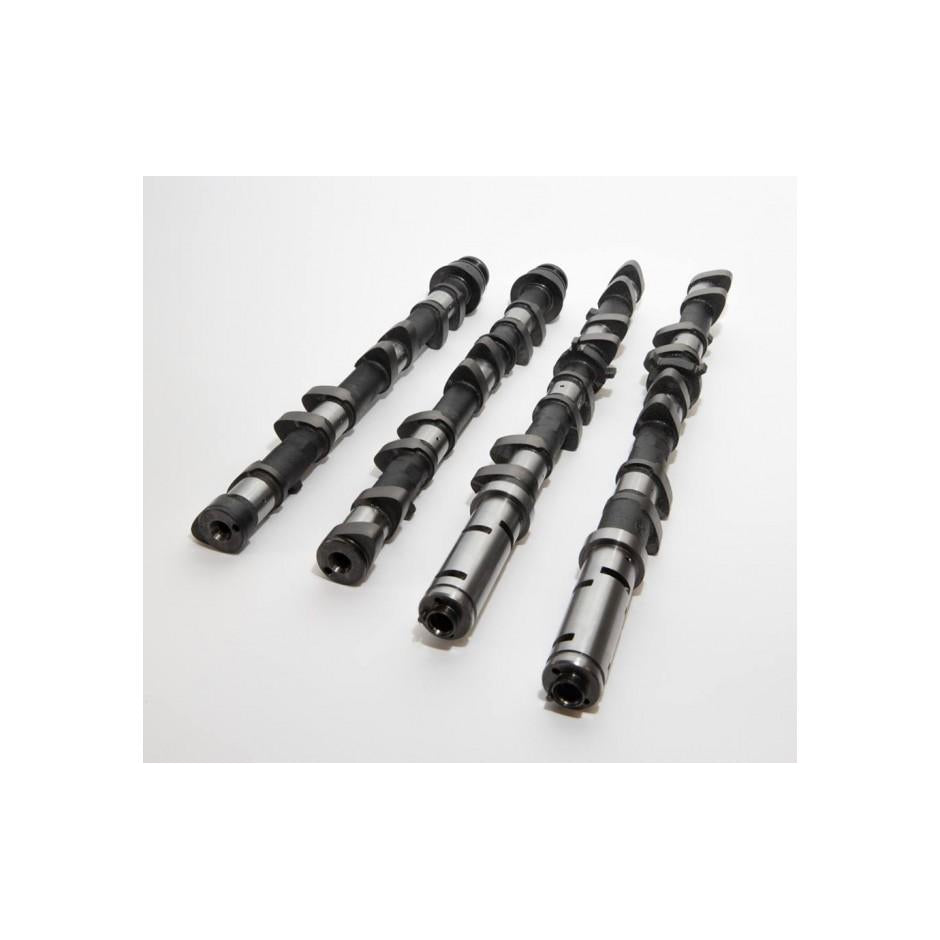

Kelford Cams 208-T 1UZ-3UZ VVTI Performance Cams (Serious Turbo)

$2,643.85 NZD
SKU KC208-T
Buy now pay later,no extra cost!

Payments from $264.38 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

265/270 Degrees advertised duration. 10.60mm/10.60mm lift.

Additional Information:

Serious Turbo engines 750+hp, Great with the use of E85. Spring upgraded needed, KVS208 is required when using more than 30+ psi of boost and 8000rpm.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 1UZ-VVTI 208-T
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 10.85mm Exhaust: 10.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.60mm Exhaust: 10.60mm
Advertised Duration @ 0.10mm Intake: 265 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 238
Timing @ 1.00mm VALVE LIFT IVO: 34 BTDC EVO: 53 BBDC
    IVC: 18 ABDC EVC: 5 ATDC
Suggested Centre Lines:   Intake: 82 Exhaust: 114
VALVE Lift @ TDC Intake: 4.93mm Exhaust: 1.50
