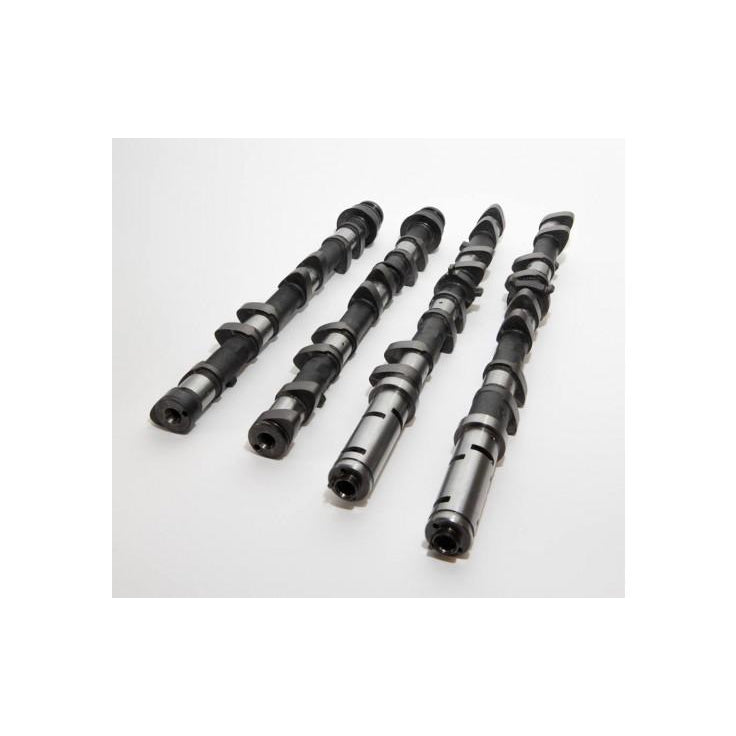

Kelford Cams 208-D 1UZ-3UZ VVTI Performance Cams (NA)
Buy now pay later,no extra cost!
Payments from $264.38 with

Note: Please check availability with us before ordering.
282/276 Degrees advertised duration. 11.60mm/11.00mm lift.
Additional Information:
NZ Stock Car 450hp cams, requires head clearance, valve spring upgrade and VVTi Deleted. Retainer to seal clearance needs to be taken into account.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1UZ-VVTI | 208-D | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.35mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.85mm | Exhaust: | 11.35mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.60mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 282 | Exhaust: | 276 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 248 | Exhaust: | 242 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 20 BTDC | EVO: | 47 BBDC | ||
| IVC: | 48 ABDC | EVC: | 15 ATDC | ||||
| Suggested Centre Lines: | Intake: | 104 | Exhaust: | 106 | |||
| VALVE | Lift @ TDC | Intake: | 3.20mm | Exhaust: | 2.59 | ||
