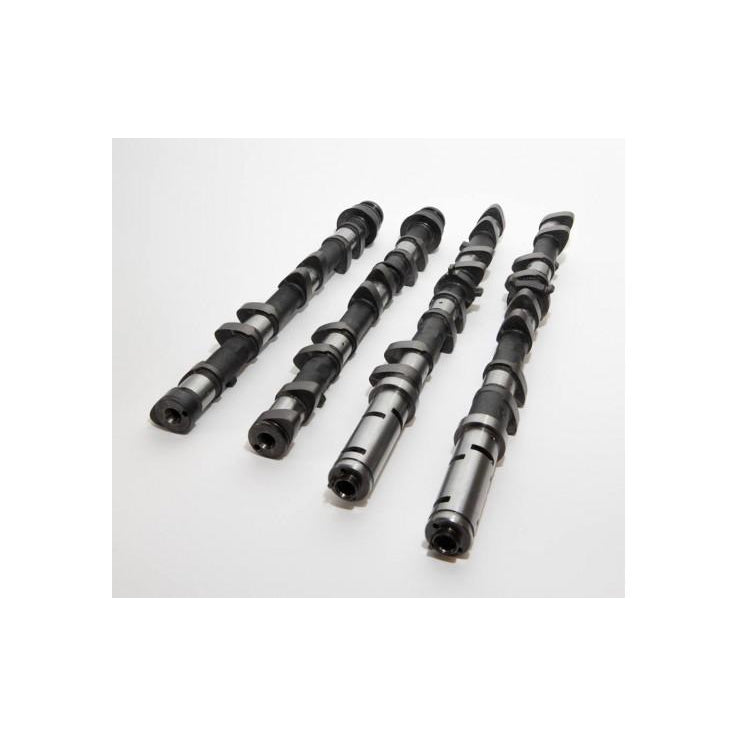

Kelford Cams 208-B 1UZ-3UZ VVTI Performance Cams (NA)
Buy now pay later,no extra cost!
Payments from $264.38 with

Note: Please check availability with us before ordering.
264/258 Degrees advertised duration. 9.60mm/9.50mm lift.
Additional Information:
Fast road cams, Suits upgraded intake & exhaust, needs tuneable ECU. Designed to work with stock head casting. Requires KVS1UZ spring.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1UZ-VVTI | 208-B | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.35mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.85mm | Exhaust: | 9.85mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.60mm | Exhaust: | 9.50mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 258 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 226 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 36 BTDC | EVO: | 43 BBDC | ||
| IVC: | 16 ABDC | EVC: | 3 ATDC | ||||
| Suggested Centre Lines: | Intake: | 80 | Exhaust: | 110 | |||
| VALVE | Lift @ TDC | Intake: | 4.85mm | Exhaust: | 1.30 | ||
