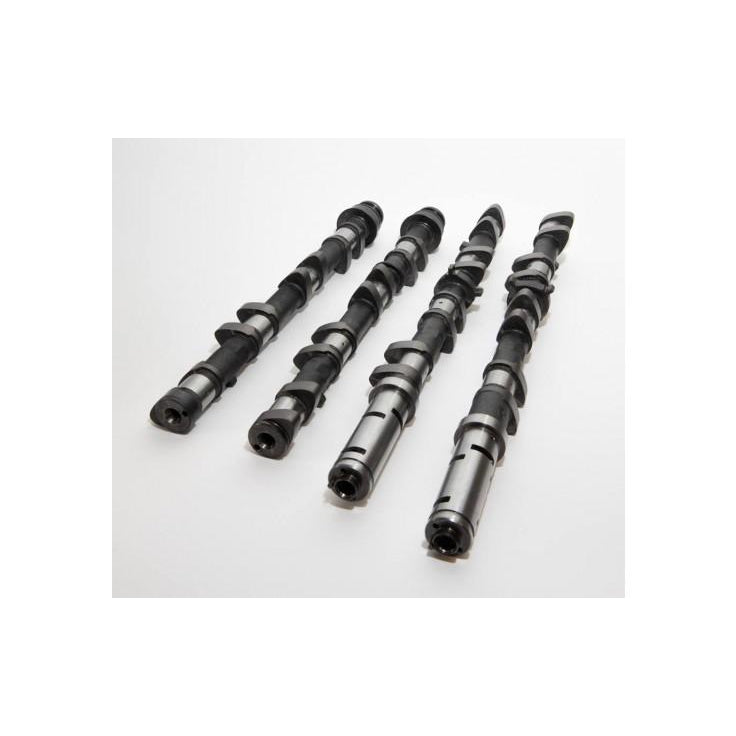

Kelford Cams 208-A 1UZ-3UZ VVTI "DROP IN" Performance Cams
Buy now pay later,no extra cost!
Payments from $264.38 with

Note: Please check availability with us before ordering.
251/251 Degrees advertised duration. 8.35mm/8.30mm lift.
Additional Information:
Performance "Drop in cams" to suit the Stock Spring and full VVTi movement. Requires tuned ECU
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1UZ-VVTI | 208-A | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.35mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 8.60mm | Exhaust: | 8.65mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 8.35mm | Exhaust: | 8.30mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 251 | Exhaust: | 251 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 218 | Exhaust: | 218 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 35 BTDC | EVO: | 39 BBDC | ||
| IVC: | 3 ABDC | EVC: | 1 BTDC | ||||
| Suggested Centre Lines: | Intake: | 74 | Exhaust: | 110 | |||
| VALVE | Lift @ TDC | Intake: | 4.42mm | Exhaust: | 0.94 | ||
