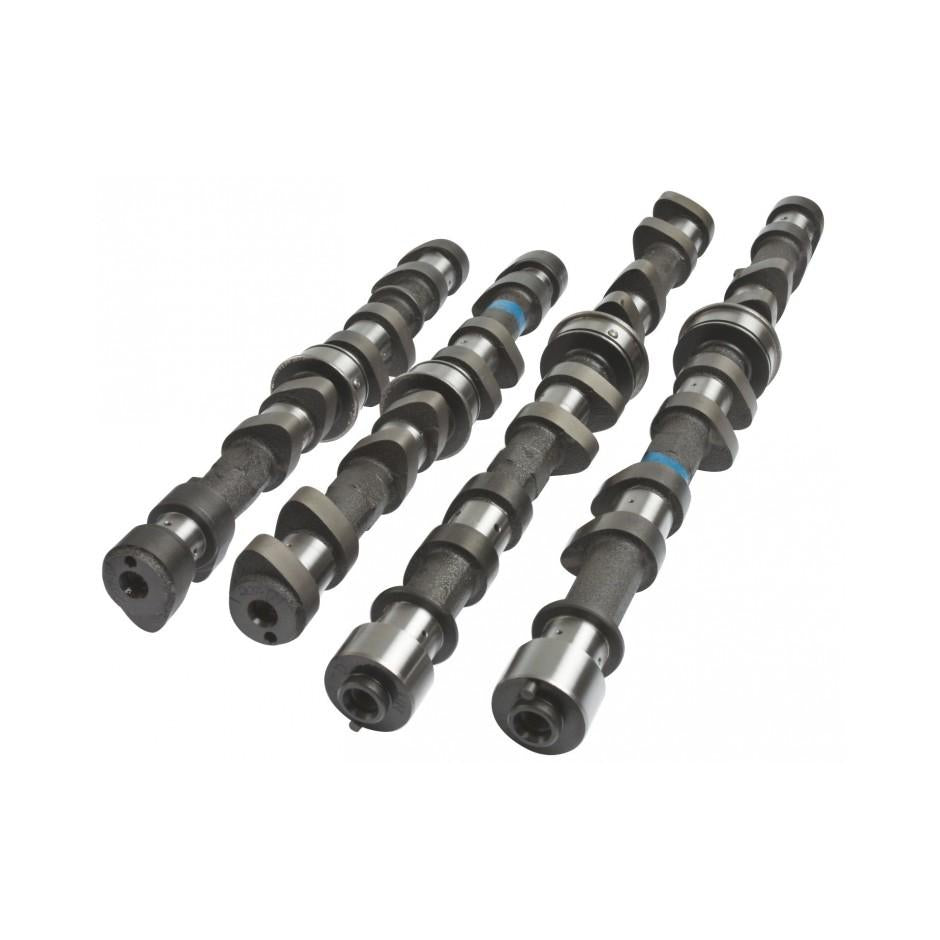

Kelford Cams 207-T1 Lexus 1UZ-FE Turbo Performance Cam
Buy now pay later,no extra cost!
Payments from $235.63 with

Note: Please check availability with us before ordering.
264/264 Degrees advertised duration. 9.35mm/9.35mm lift.
Additional Information:
High performance cams for mild turbocharged engines.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| TOYOTA | Lexus 1UZ-FE | 207-T1 | ||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 9.60mm | Exhaust: | 9.65mm | ||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | ||
| Nett Valve Lift: | Intake: | 9.35mm | Exhaust: | 9.35mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 224 | Exhaust: | 224 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 3 BTDC | EVO: | 46 BBDC | |
| IVC: | 41 ABDC | EVC: | 2 BTDC | |||
| Suggested Centre Lines: | Intake: | 109 | Exhaust: | 114 | ||
| VALVE | Lift @ TDC | Intake: | 1.26mm | Exhaust: | 0.77 |
