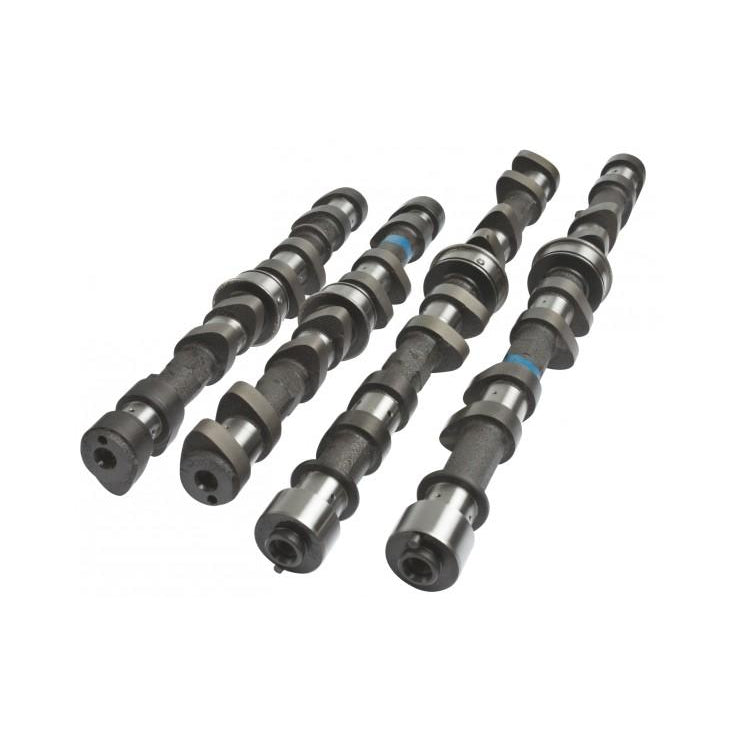

Kelford Cams 207-C Lexus 1UZ-FE Performance Cam
Buy now pay later,no extra cost!
Payments from $235.63 with

Note: Please check availability with us before ordering.
264/264 Degrees advertised duration. 9.36mm/9.36mm lift.
Additional Information:
264 Degree mild performance cams. ECU upgrade required.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | Lexus 1UZ-FE | 207-C | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.61mm | Exhaust: | 9.66mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.36mm | Exhaust: | 9.36mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 224 | Exhaust: | 224 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 4 BTDC | EVO: | 40 BBDC | ||
| IVC: | 40 ABDC | EVC: | 4 ATDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 108 | |||
| VALVE | Lift @ TDC | Intake: | 1.37mm | Exhaust: | 1.37 | ||
