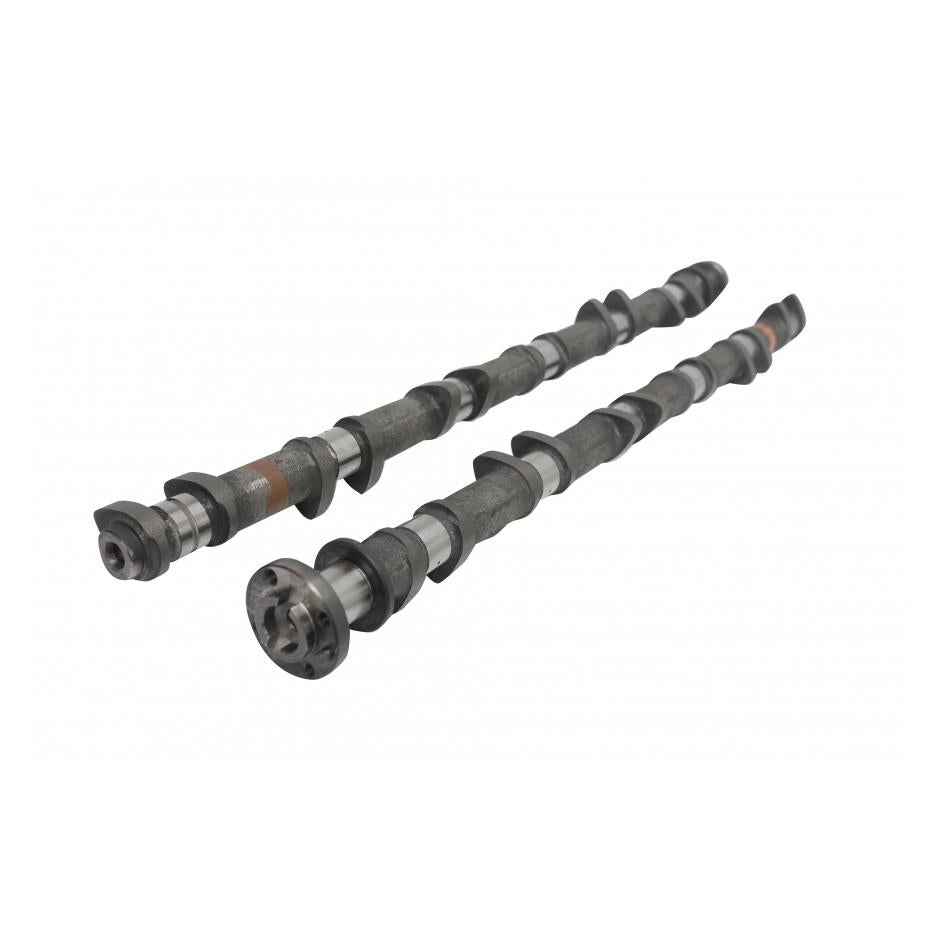

Kelford Cams 223-T1 NISSAN TB48 Turbo High Performance Cam Set

$1,758.35 NZD
SKU KC223-T1
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

278/278 Degrees advertised duration, 10.40mm/10.35mm lift.

Additional Information:

Camshafts specifically designed to suit high HP turbocharged TB48 competition engines.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN TB48 DOHC 223-T1
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.65mm Exhaust: 10.65mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.40mm Exhaust: 10.35mm
Advertised Duration @ 0.10mm Intake: 278 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 238 Exhaust: 238
Timing @ 1.00mm VALVE LIFT IVO: 13 ATDC EVO: 54 BBDC
    IVC: 71 ABDC EVC: 4 ATDC
Suggested Centre Lines:   Intake: 132 Exhaust: 115
VALVE Lift @ TDC Intake: 0.15mm Exhaust: 1.42
