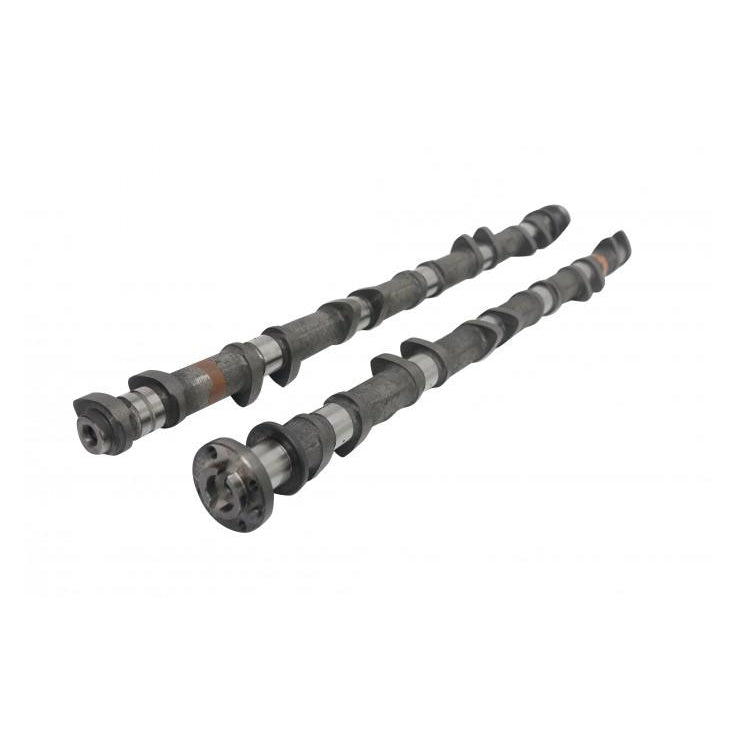

Kelford Cams 223-T NISSAN TB48 Turbo High Performance Cam Set

$1,758.35 NZD
SKU KC223-T
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

264/264 Degrees advertised duration, 9.60mm/9.55mm lift.

Additional Information:

Stage 1 Turbo cams for road and off road racing applications. Primary lobe specification is / Degrees advertised duration, lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN TB48 DOHC 223-T
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.85mm Exhaust: 9.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.60mm Exhaust: 9.55mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 225 Exhaust: 225
Timing @ 1.00mm VALVE LIFT IVO: 19.5 ATDC EVO: 48.5 BBDC
    IVC: 64.5 ABDC EVC: 3.5 BTDC
Suggested Centre Lines:   Intake: 132 Exhaust: 116
CAM Lift @ TDC Intake: Exhaust: 1.24
