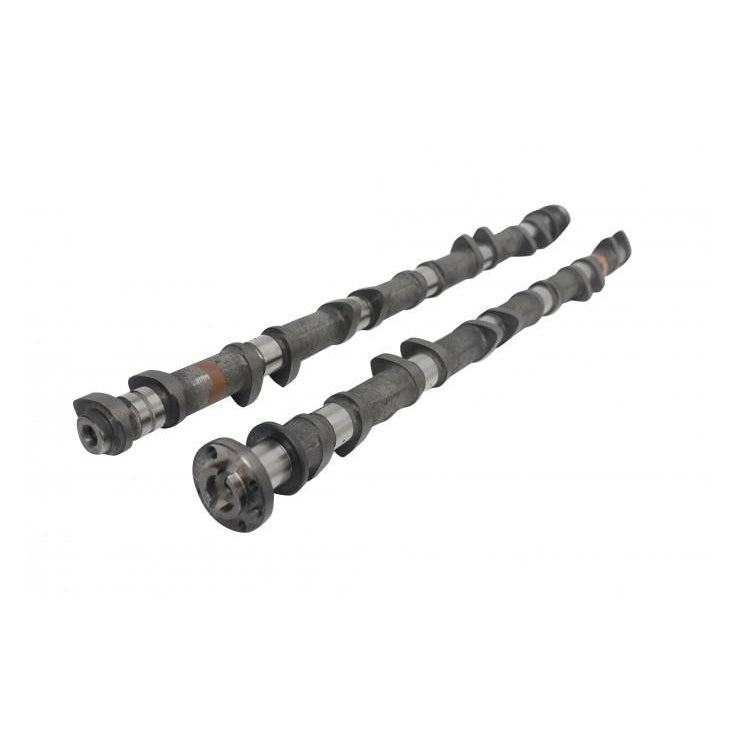

Kelford Cams 223-D NISSAN TB48 High Performance Cam Set
Kelford Cams 223-D NISSAN TB48 High Performance Cam Set

Kelford Cams 223-D NISSAN TB48 High Performance Cam Set

by Kelford Cams
$1,758.35 NZD
SKU KC223-D
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

308/294 Degrees advertised duration, 12.10mm/11.80mm lift.

Additional Information:

Stage 3 camshafts to suit highly modified naturally aspirated stroker engines with high compression, ported heads and improved intake manifold etc. Primary lobe specification is / Degrees advertised duration, lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN TB48 DOHC 223-D
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 12.35mm Exhaust: 12.10mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 12.10mm Exhaust: 11.80mm
Advertised Duration @ 0.10mm Intake: 308 Exhaust: 294
Duration @ 1.00mm VALVE LIFT Intake: 264 Exhaust: 256
Timing @ 1.00mm VALVE LIFT IVO: 6 BTDC EVO: 54 BBDC
    IVC: 78 ABDC EVC: 22 ATDC
Suggested Centre Lines:   Intake: 126 Exhaust: 106
VALVE Lift @ TDC Intake: Exhaust: 3.65
