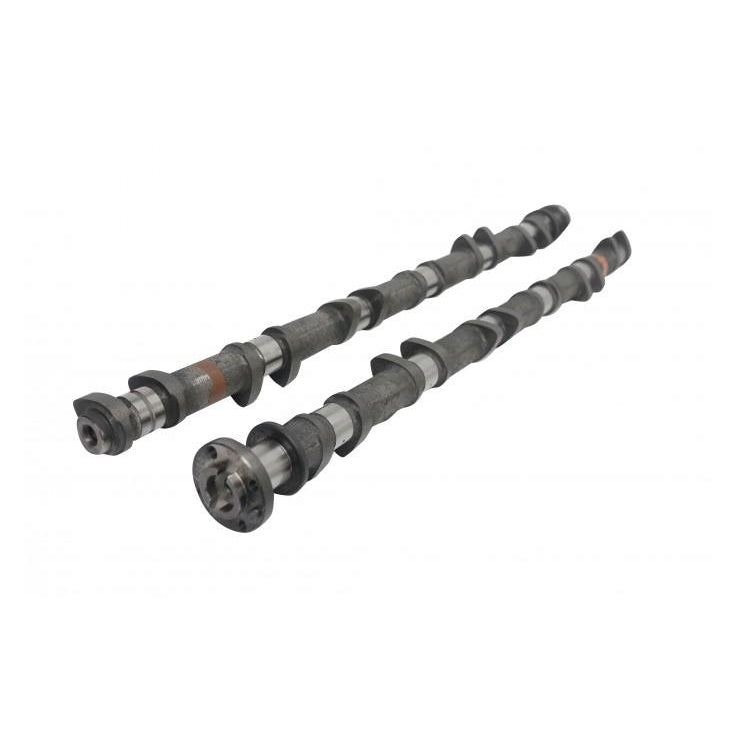

Kelford Cams 223-A NISSAN TB48 High Performance Cam Set
Buy now pay later,no extra cost!
Payments from $175.83 with

Note: Please check availability with us before ordering.
264/264 Degrees advertised duration, 9.60mm/9.55mm lift.
Additional Information:
Stage 1 performance camshaft set to suit near stock TB48 engines. Primary lobe specification is / Degrees advertised duration, lift.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | TB48 DOHC | 223-A | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.85mm | Exhaust: | 9.85mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.60mm | Exhaust: | 9.55mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 225 | Exhaust: | 225 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 13.5 ATDC | EVO: | 42.5 BBDC | ||
| IVC: | 58.5 ABDC | EVC: | 2.5 ATDC | ||||
| Suggested Centre Lines: | Intake: | 126 | Exhaust: | 110 | |||
| VALVE | Lift @ TDC | Intake: | 0.12mm | Exhaust: | 1.24 | ||
