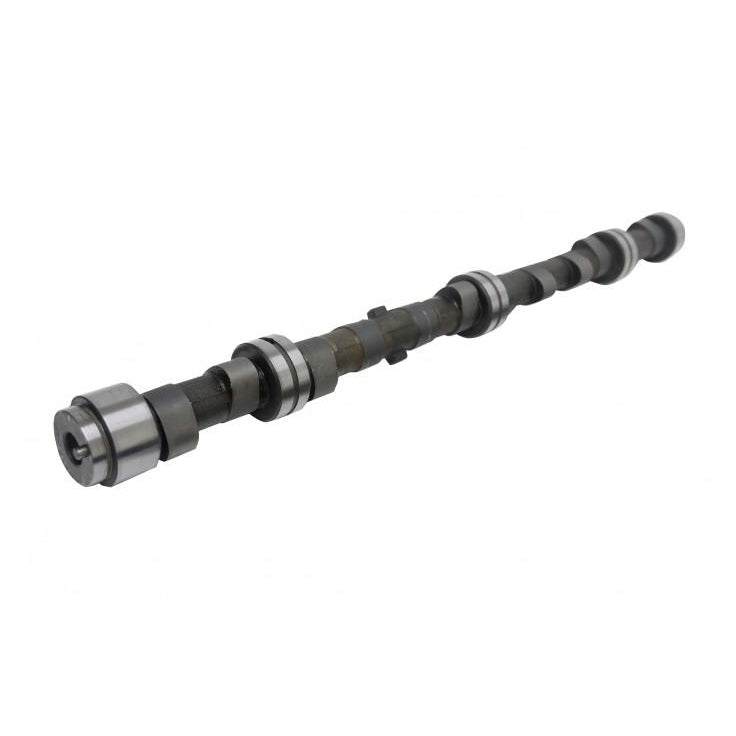

Kelford Cams 222-T Nissan L20-28 OHC (6cyl) Performance Cam

$941.85 NZD
SKU KC222-T
Buy now pay later,no extra cost!

Payments from $94.18 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

264/264 Degrees advertised duration, 10.90mm/10.90mm lift.

Additional Information:

High performance cam made on wider lobe separation to reduce overlap for turbocharged applications.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN L SERIES 222-T
Valve Clearance: Intake: 0.20mm Set HOT at the CAM
  Exhaust: 0.20mm Set HOT at the CAM

Cam Lift:   Intake: 7.47mm Exhaust: 7.47mm
Rocker Ratio:   Intake: 1.5 Exhaust: 1.5
Nett Valve Lift:   Intake: 10.90mm Exhaust: 10.90mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 52 BBDC
    IVC: 44 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 1.93mm Exhaust: 1.00
