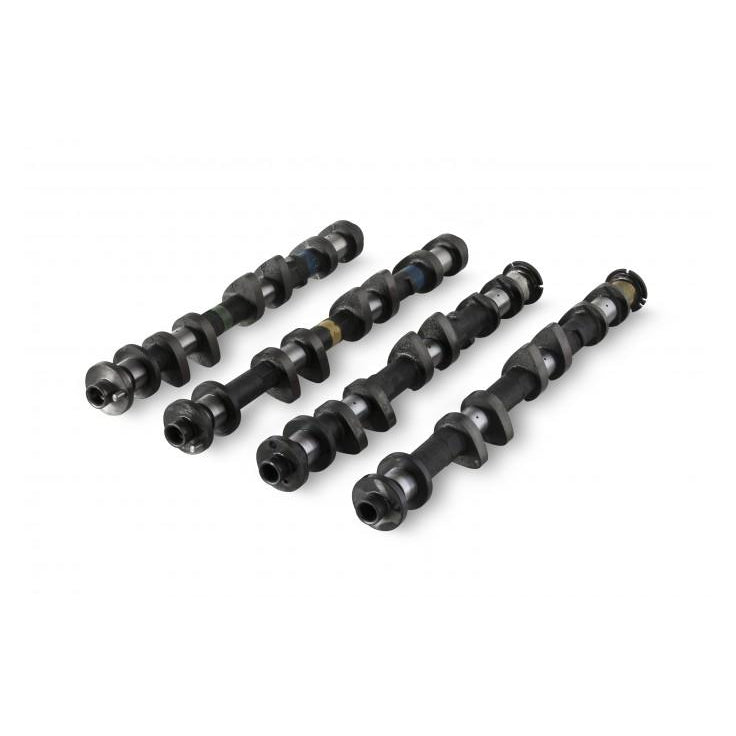

Kelford Cams 2-189-B Nissan N/A Q35 REV UP (350Z) Stage 2 Cams

$2,146.18 NZD
SKU KC2-189-B
Buy now pay later,no extra cost!

Payments from $214.61 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

282/272 Degrees advertised duration. 11.50mm/11.00mm lift.

Additional Information:

Stage 2 cam to suit strong naturally aspirated engine builds. Ideal specification for fast street performance and time attack competition.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN VQ35 REV UP (350Z) 2-189-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.75mm Exhaust: 11.30mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.50mm Exhaust: 11.00mm
Advertised Duration @ 0.30mm Intake: 282 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 5 ATDC EVO: 61 BBDC
    IVC: 65 ABDC EVC: 9 BTDC
Suggested Centre Lines:   Intake: 125 Exhaust: 125
VALVE Lift @ TDC Intake: 0.60mm Exhaust: 0.31mm
