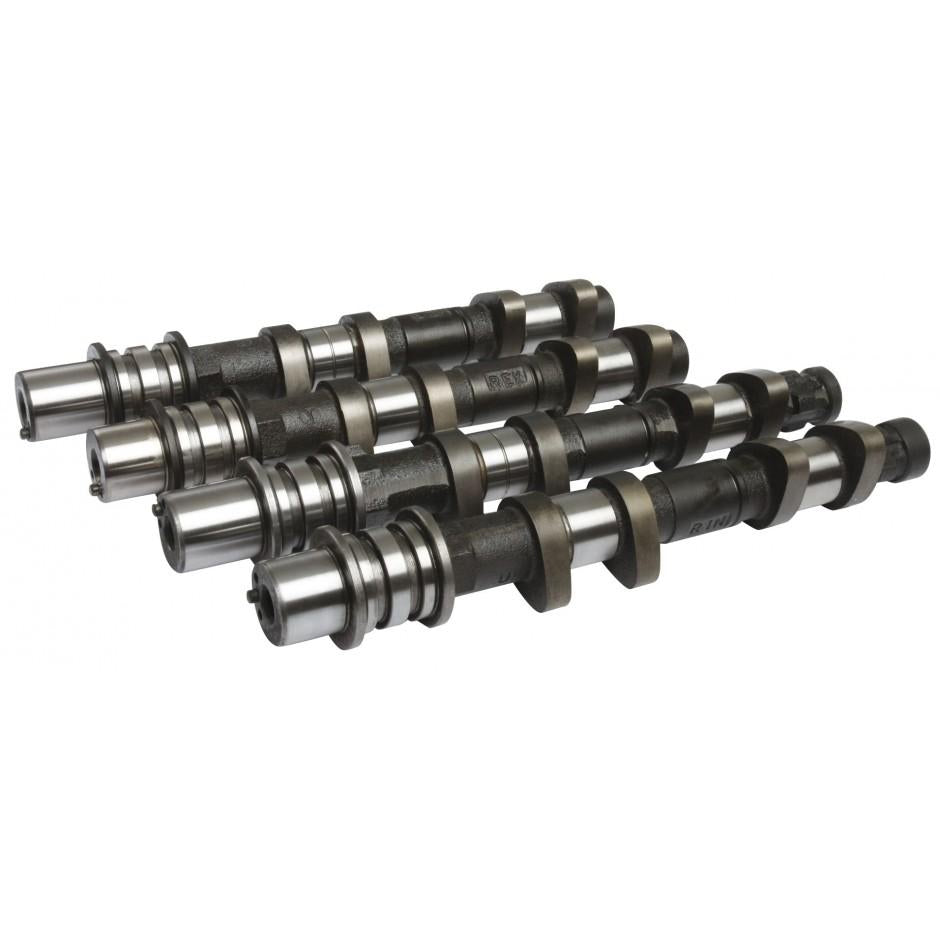

Kelford Cams 199-L Subaru WRX Version 5+ (non AVCS) Performance Cam

$1,758.35 NZD
SKU KC199-L
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

282&278/278 Degrees advertised duration. 11.50mm&11.00mm/11.00mm lift.

Additional Information:

High lift 282 degree racing duration racing camshafts, Requires cylinder head modification to fit. Suits well built motors with larger intake manifolds. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-L
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.70mm Exhaust: 11.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.50mm Exhaust: 11.00mm
Advertised Duration @ 0.25mm Intake: 282 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 240 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 10 BTDC EVO: 54 BBDC
    IVC: 50 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 116
VALVE Lift @ TDC Intake: 2.10mm Exhaust: 1.23
