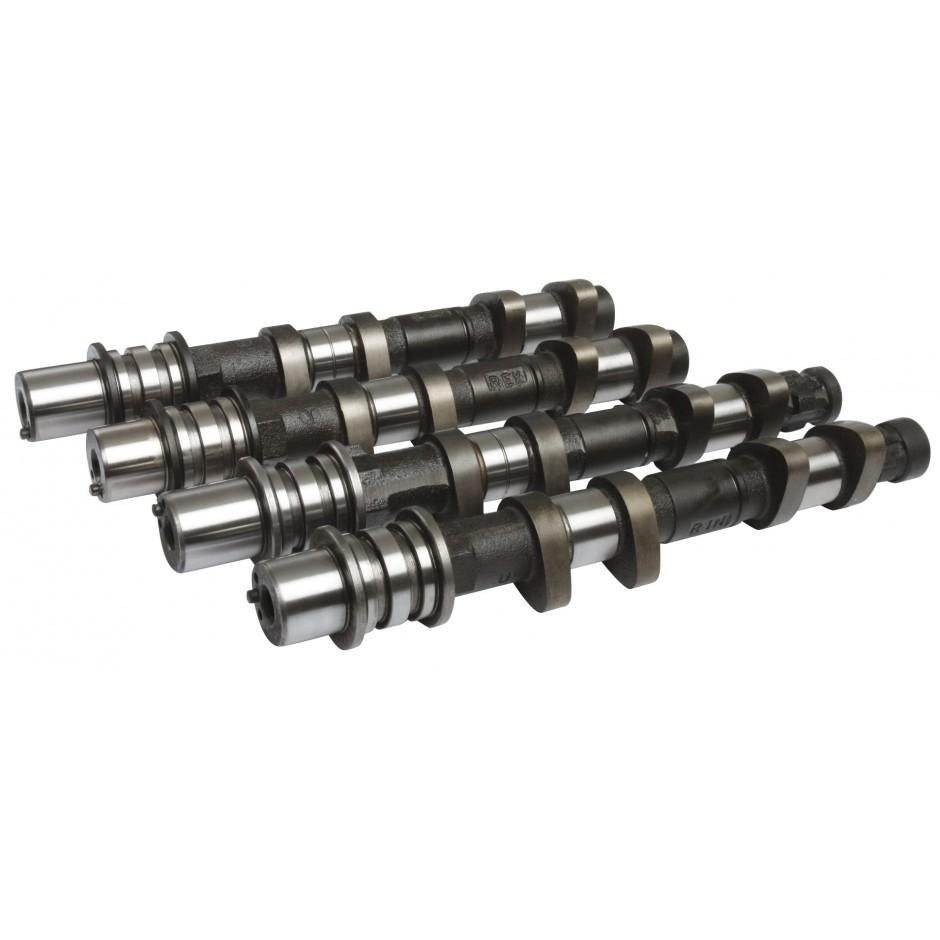

Kelford Cams 199-K Subaru WRX Version 5+ (non AVCS) Performance Cam
Buy now pay later,no extra cost!
Payments from $175.83 with

Note: Please check availability with us before ordering.
272&268/268 Degrees advertised duration. 11.30mm&10.50mm/10.50mm lift.
Additional Information:
High lift 272 degree racing camshafts. Requires cylinder head modification to fit. Suits well built competition motors. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| SUBARU | EJ20 WRX Version 5-6 non AVCS | 199-K | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.50mm | Exhaust: | 10.75mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.30mm | Exhaust: | 10.50mm | |||
| Advertised Duration @ | 0.25mm | Intake: | 272 | Exhaust: | 268 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 228 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 47 BBDC | ||
| IVC: | 46 ABDC | EVC: | 1 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 1.68mm | Exhaust: | 1.11 | ||
