CONTACT US TO ORDER - OUT OF STOCK

This product is currently out of stock. Enter your details delow and the Speed Science team will be in touch.

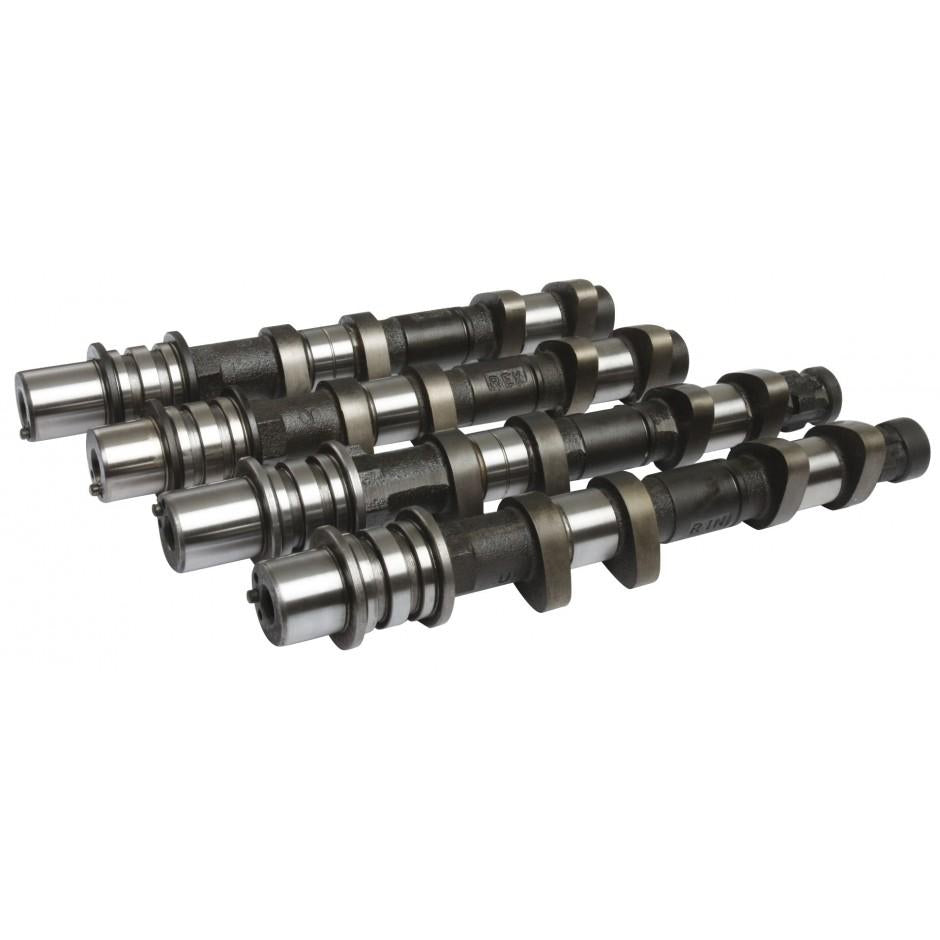

Kelford Cams 199-E Subaru WRX Version 5+ (non AVCS) Performance Cam

$1,758.35 NZD
SKU KC199-E
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

274&270/270 Degrees advertised duration. 10.60mm&10.60mm/10.60mm lift.

Additional Information:

272 degree high performance camshafts to suit most motorsport applications. Suits well built engines on E85.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-E
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.80mm Exhaust: 10.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.60mm Exhaust: 10.60mm
Advertised Duration @ 0.25mm Intake: 274 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 228
Timing @ 1.00mm VALVE LIFT IVO: 6 BTDC EVO: 47 BBDC
    IVC: 46 ABDC EVC: 1 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 113
VALVE Lift @ TDC Intake: 1.68mm Exhaust: 1.13
